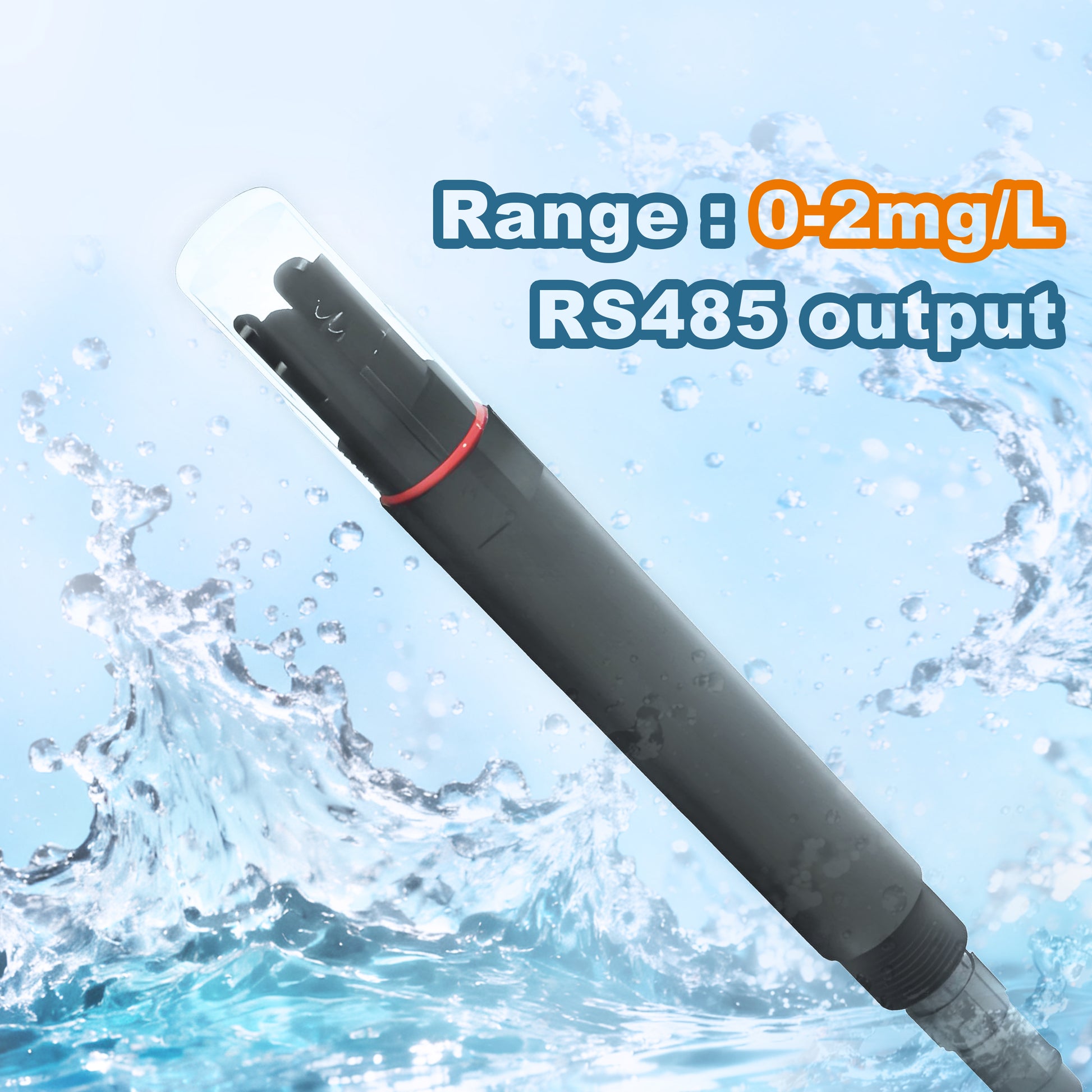

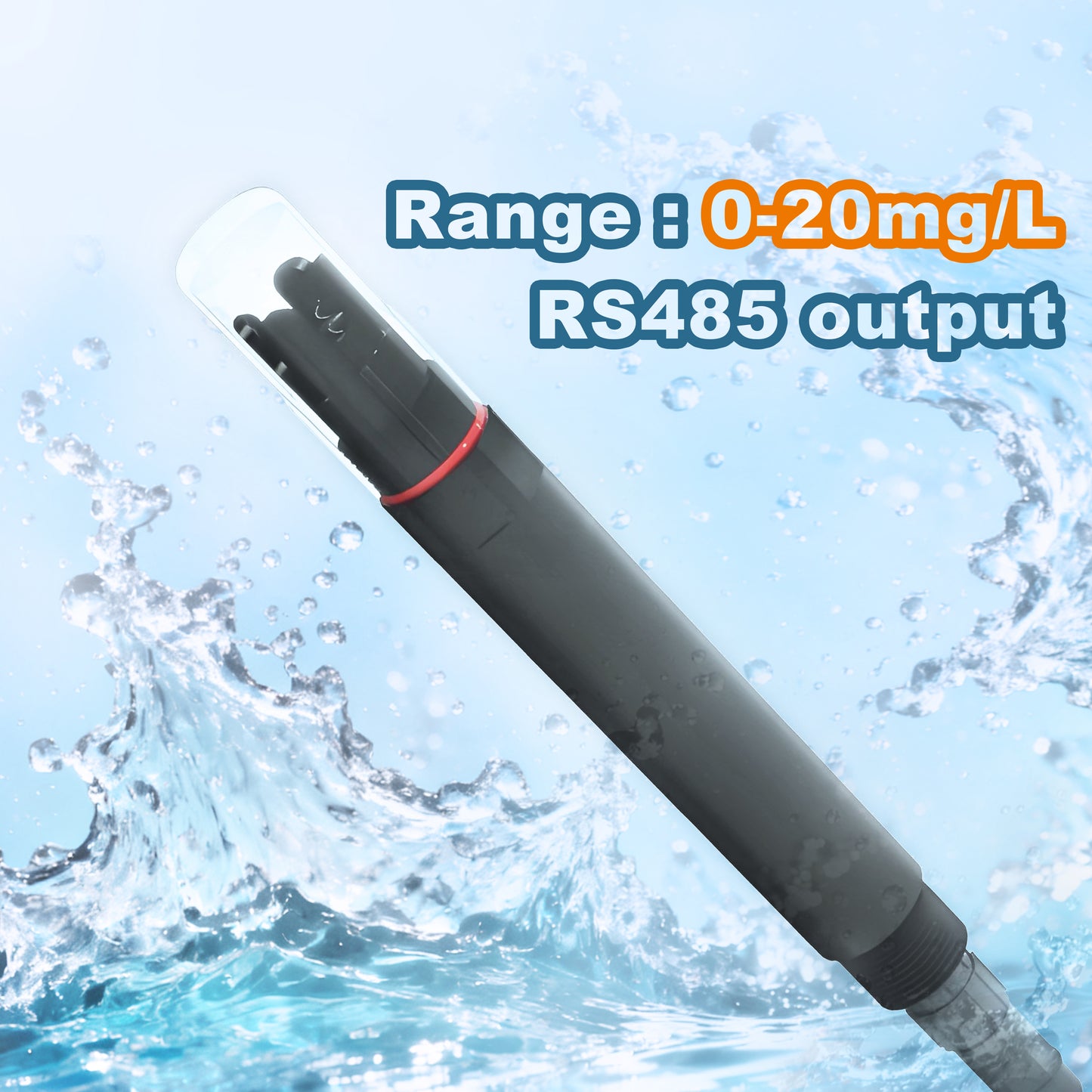

RS485 Output 0-2mg/L / 0-8mg/L / 0-20mg/L Residual Chlorine Sensor | Three-Electrode Structure, No Frequent Calibration Required

RS485 Output 0-2mg/L / 0-8mg/L / 0-20mg/L Residual Chlorine Sensor | Three-Electrode Structure, No Frequent Calibration Required

$163.60 USD
$163.60 USD
Sale Sold out
样式

WQS-RC series Residual Chlorine sensor manual

Product description

This product is a device for measuring the concentration of residual chlorine (hypochlorous acid and hypochlorite ion concentrations) in water bodies. Adopting a three-electrode system, it features high measurement accuracy, long service life, and no need for frequent calibration. It is suitable for automatic chemical dosing control in circulating water, chlorine dosing control in swimming pools, as well as the accurate measurement of residual chlorine content in aqueous solutions in drinking water treatment plants, drinking water distribution networks, swimming pools, and hospital wastewater.

Features

  • The residual chlorine measurement range is 0-2mg/L, 0-8mg/L, 0-20mg/L, with a resolution of 0.01mg/L.

  • Integrated design with direct 485 signal output, eliminating signal interference

  • 3/4-inch top and bottom mounting thread design for easy installation.

  • Protection class IP68.

  • Adopts advanced membrane-free constant voltage sensor, no need to replace membranes and reagents.

  • RS485 communication interface: MODBUS RTU communication protocol allows easy connection to computers for monitoring and communication.

  • Modbus communication address can be set, and the baud rate can be modified.

  • The device adopts wide voltage power supply, suitable for DC 7~30V.

Basic parameters

Measuring range

0-2mg/L, 0-8mg/L, 0-20mg/L

Measurement error

±5%FS；±0.5℃（25℃）

Repeatability Error

±0.05mg/L

Resolution

0.01mg/L；0.1%；0.1℃

Response time

≤30s

Operating conditions

Temperature resistance of the transmitter component: 0-50℃

PH: 4-9

Flow rate: 30～60 L/h

Power supply

DC7-30V

Max Power consumption

0.2W@24V DC

Communication Interface

RS485; standard Modbus-RTU protocol;

baud rate: default 4800 (1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 can be set)

Measurement principle

Fluorescence method

Fluorescent membrane lifespan

Normal service life is 1 year.

Pressure resistance

0.6MPa

Waterproof class

IP68

Electrode cable length

5m

Enclosure material

Corrosion - resistant plastic


Size



Wiring

Cable color

Description

Brown

Power + (DC10-30V)

black

Power -

Yellow (or green)

RS485 A+

blue

RS485 B-
