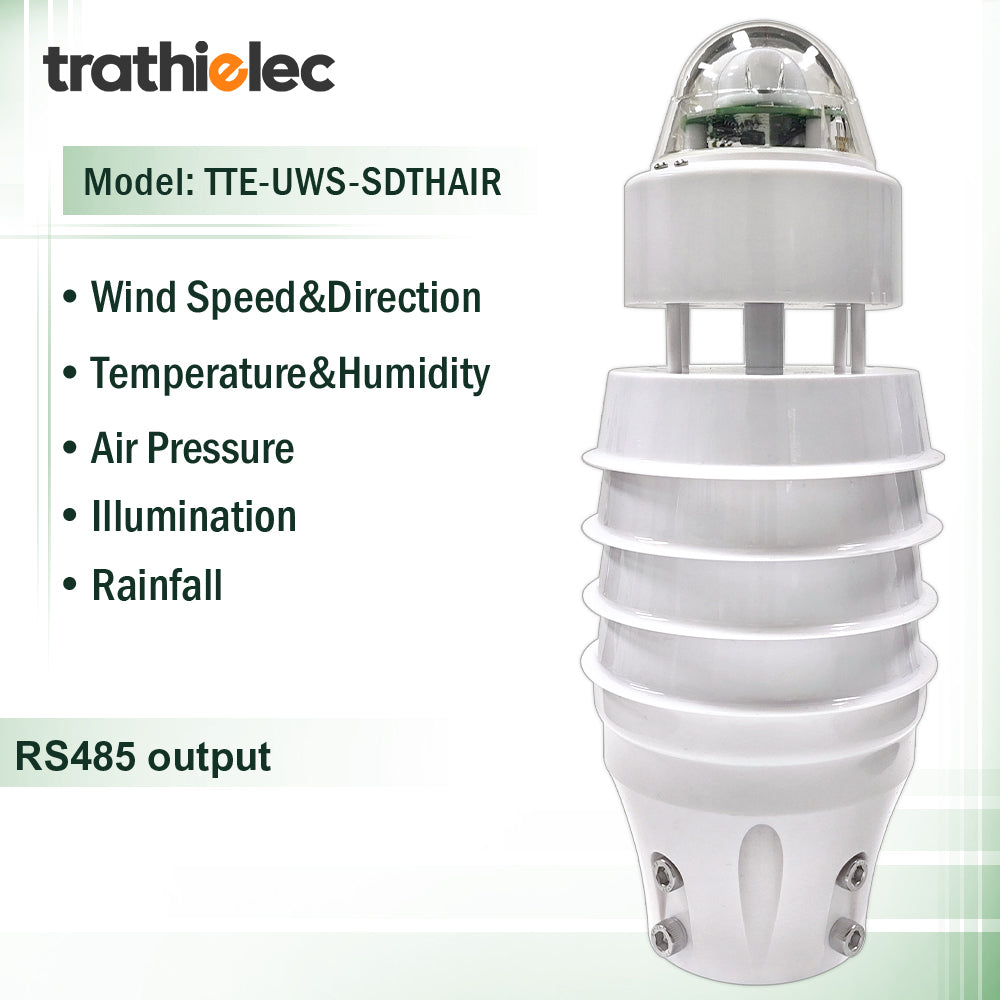

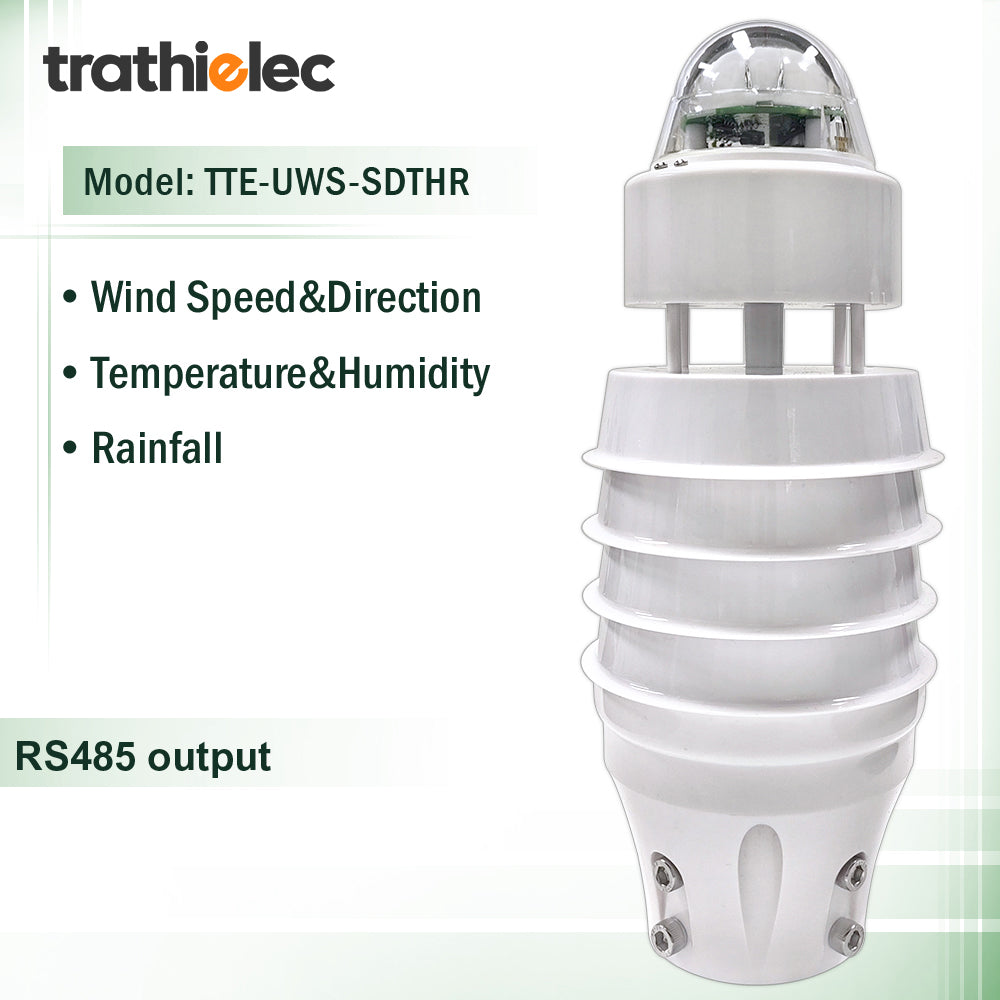

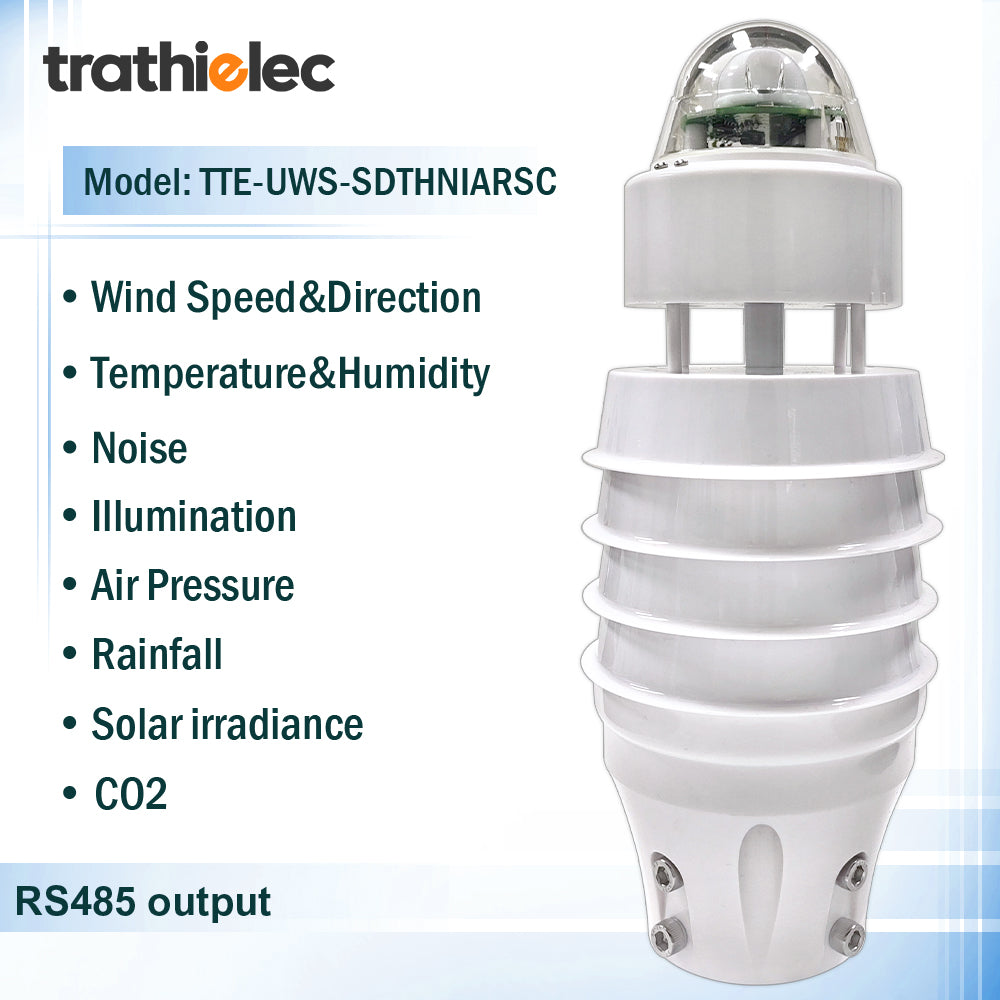

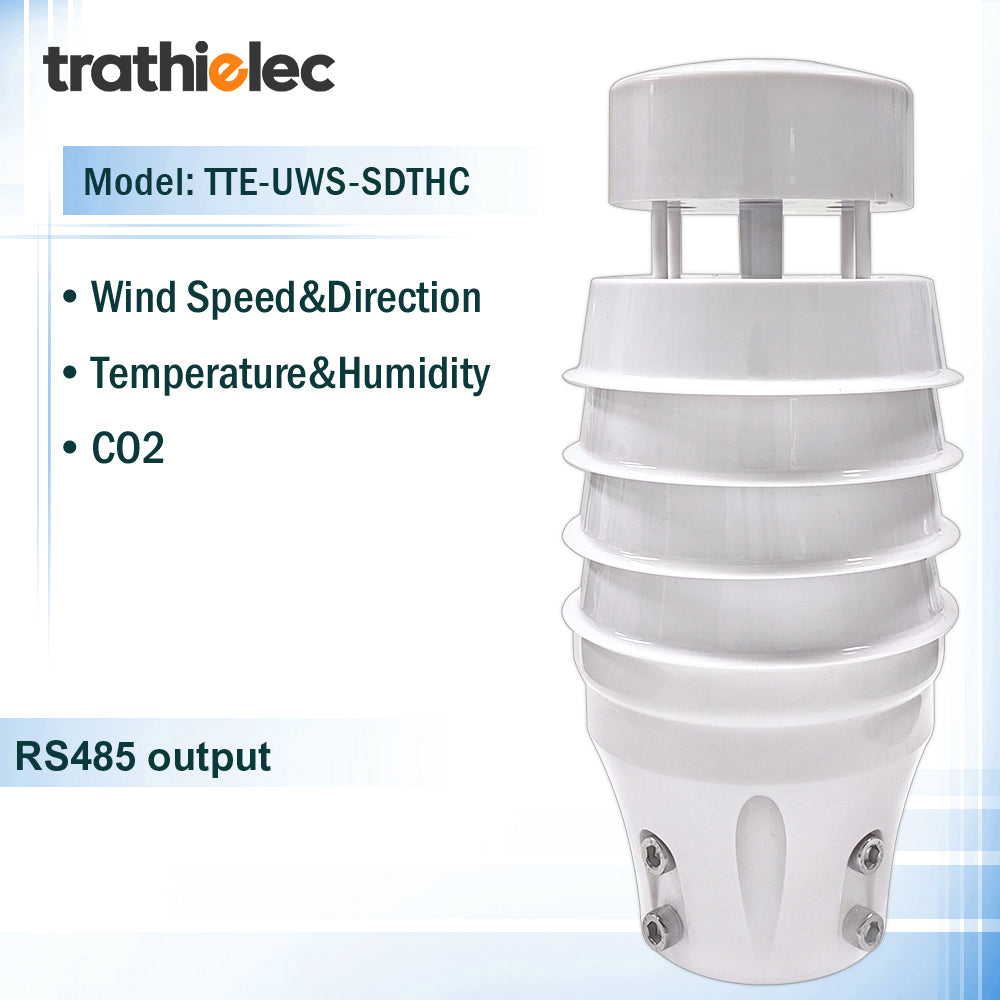

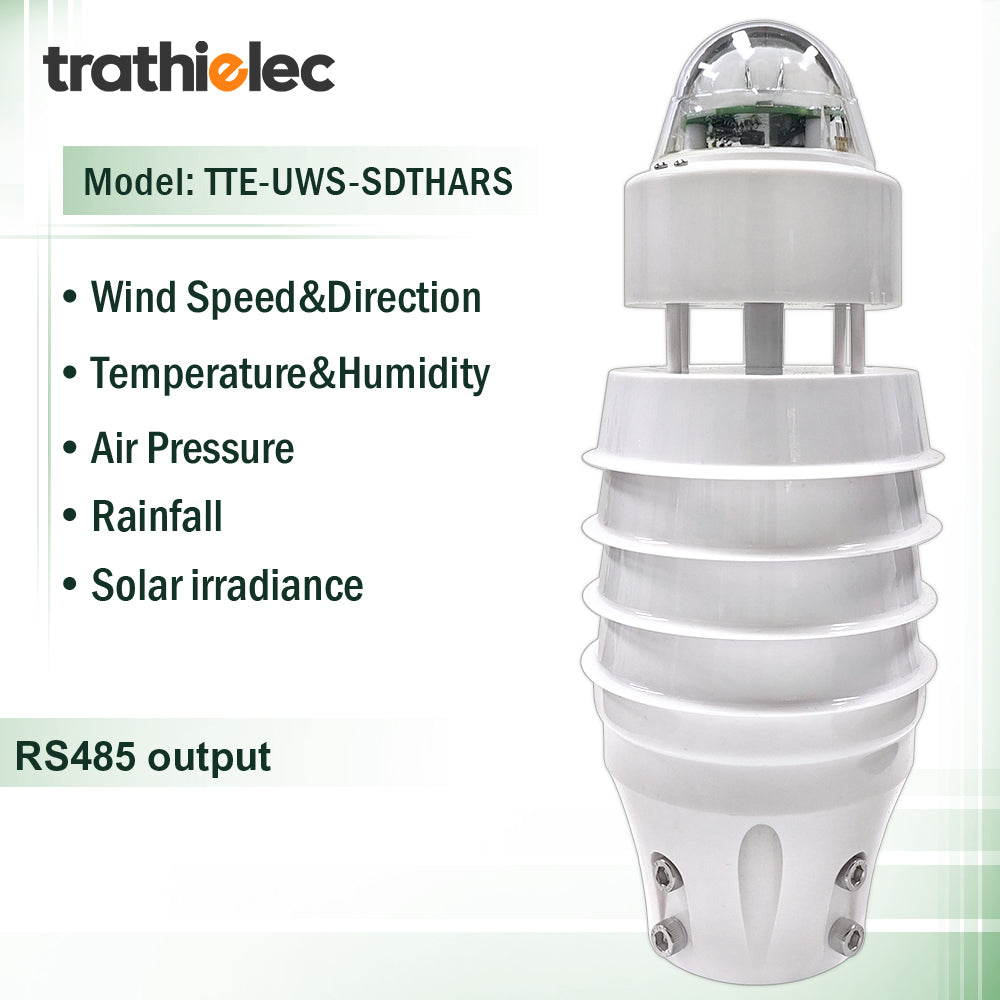

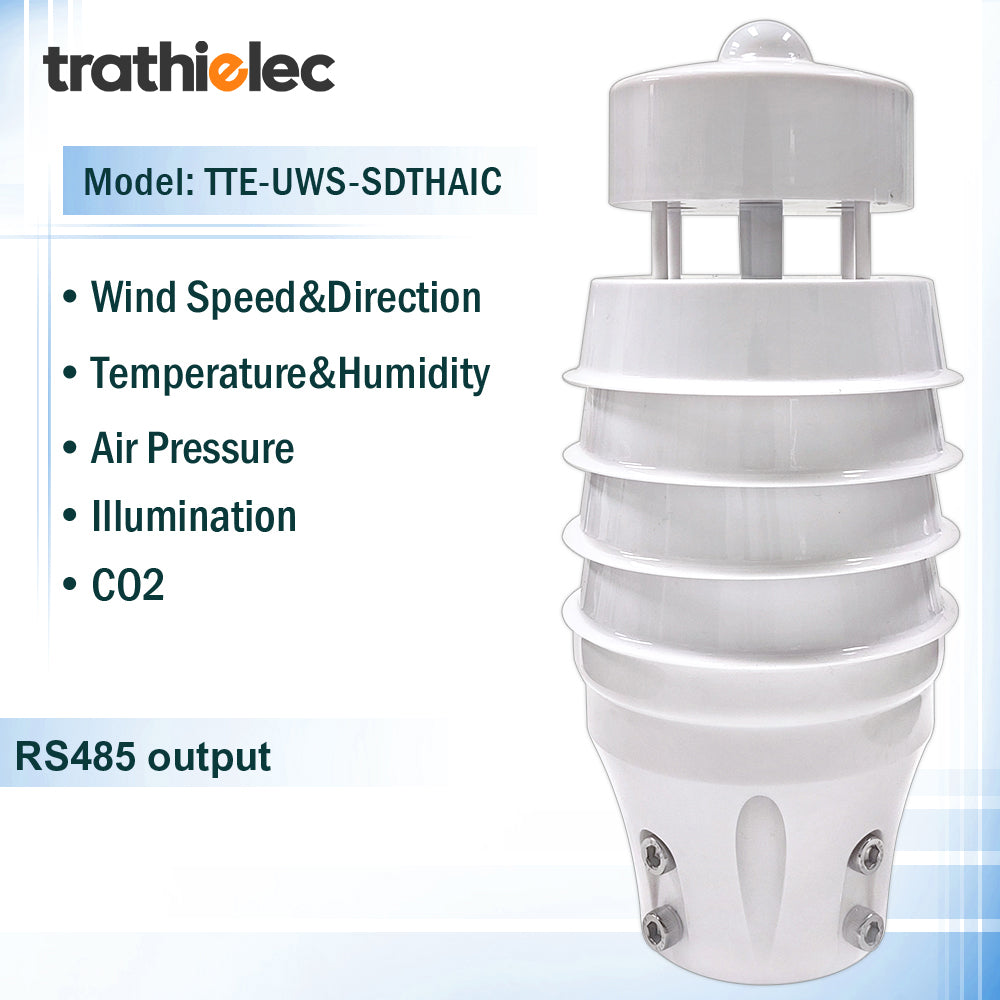

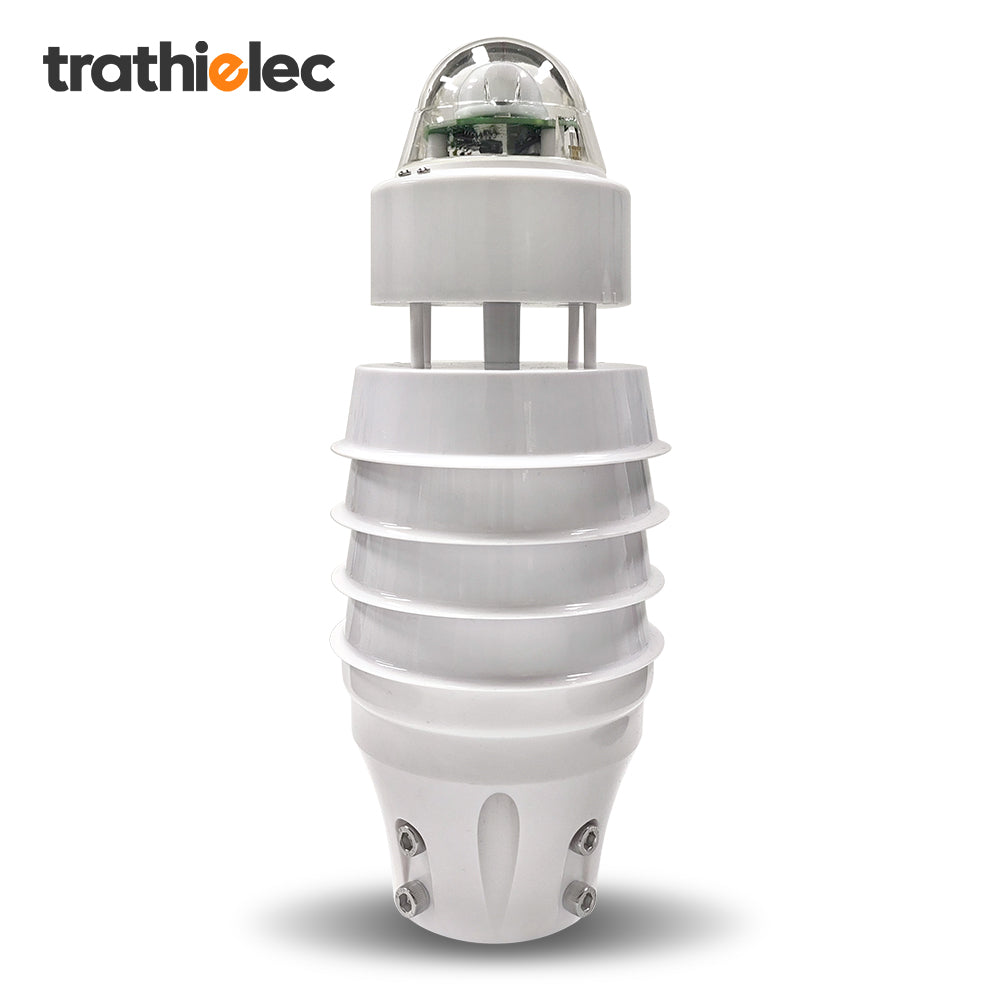

Air Temperature Humidity Noise PM2.5 Pressure Light CO2 Solar Radiation Rainfall Ultrasonic Weather Station with RS485 output

Regular price $106.00 USD

Regular price Sale price $106.00 USD

Unit price / per

Sale Sold out

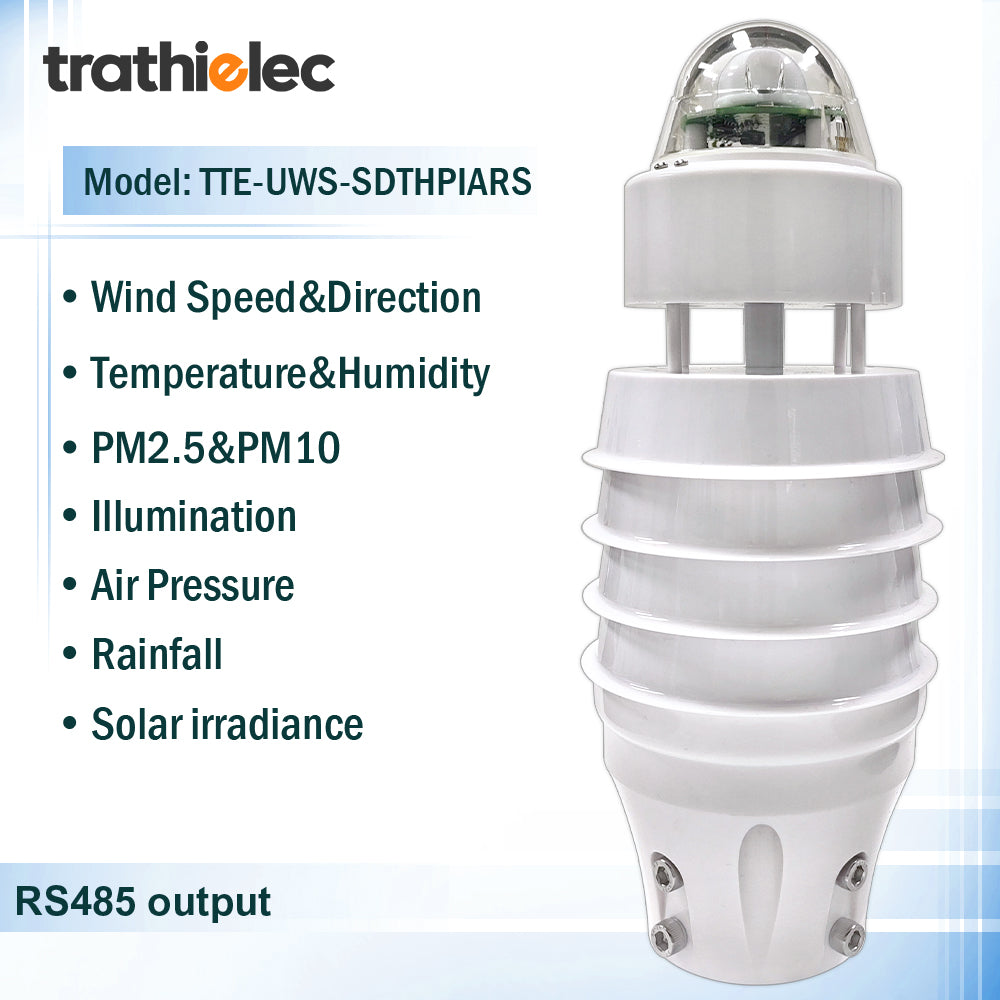

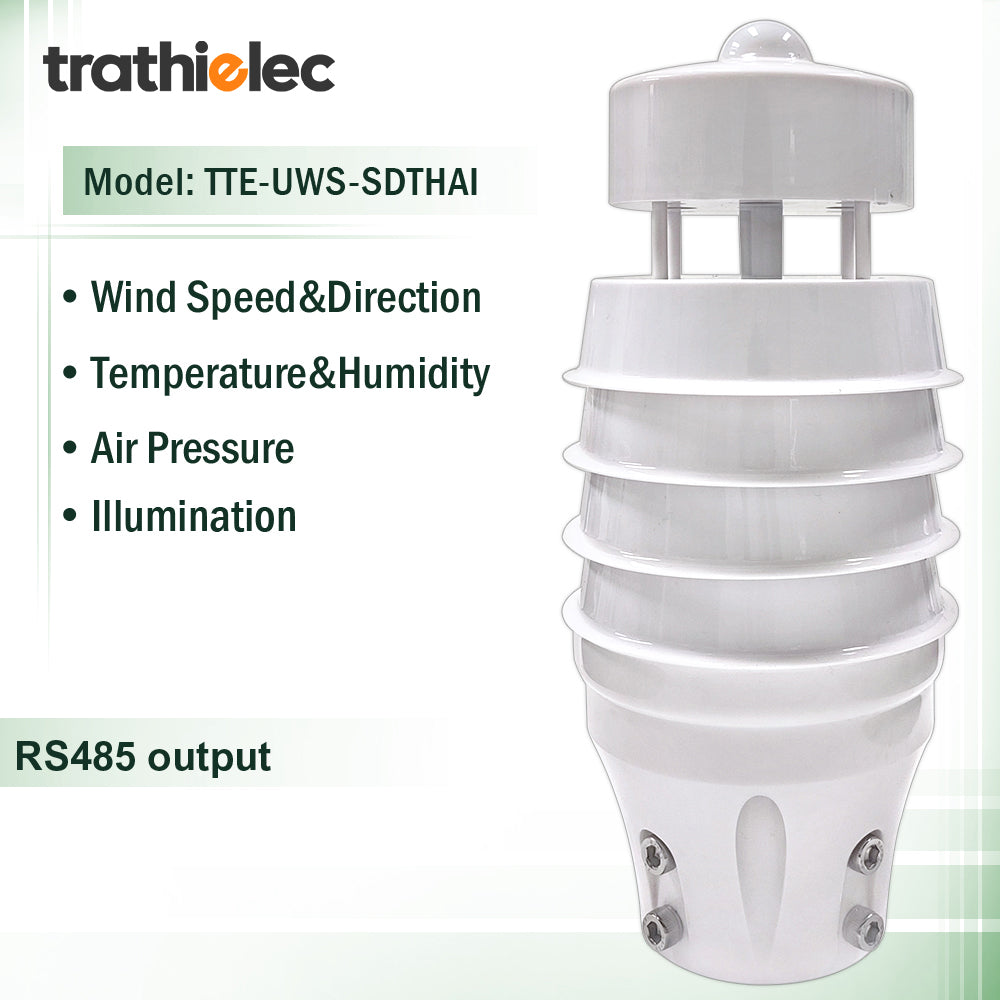

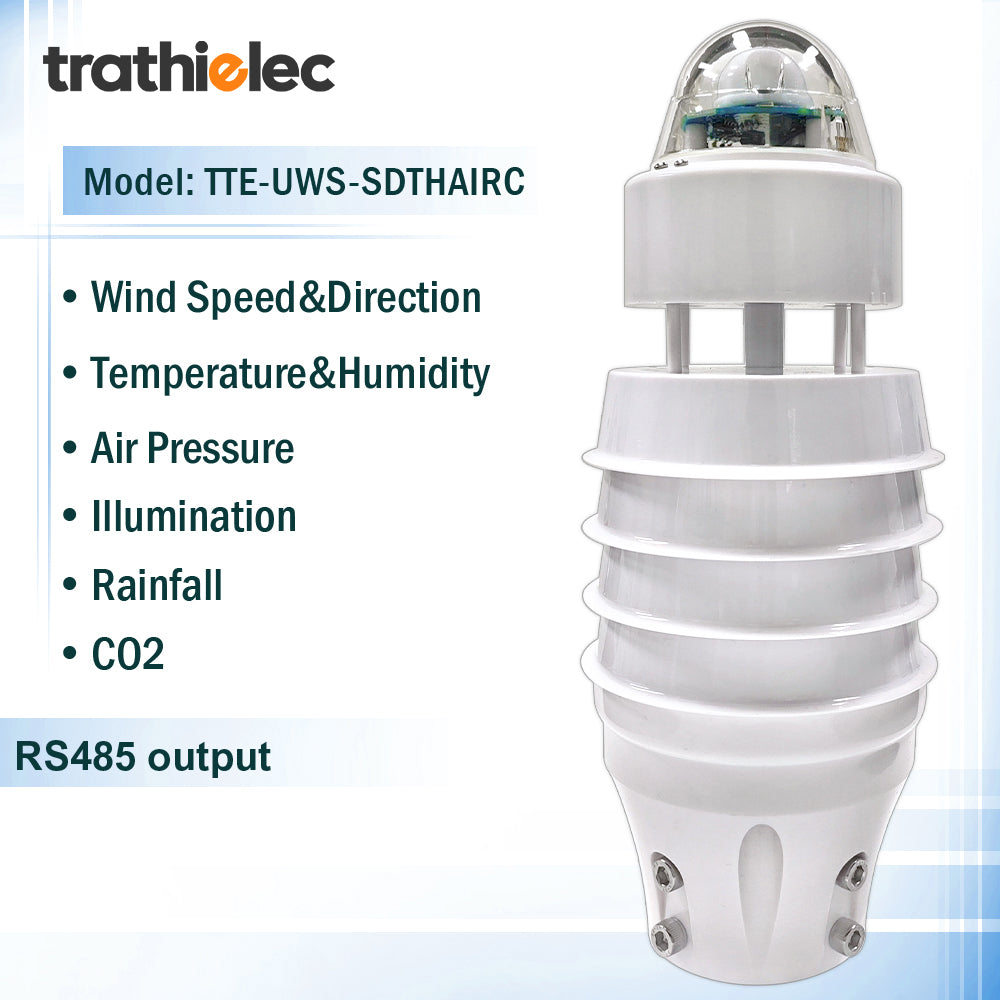

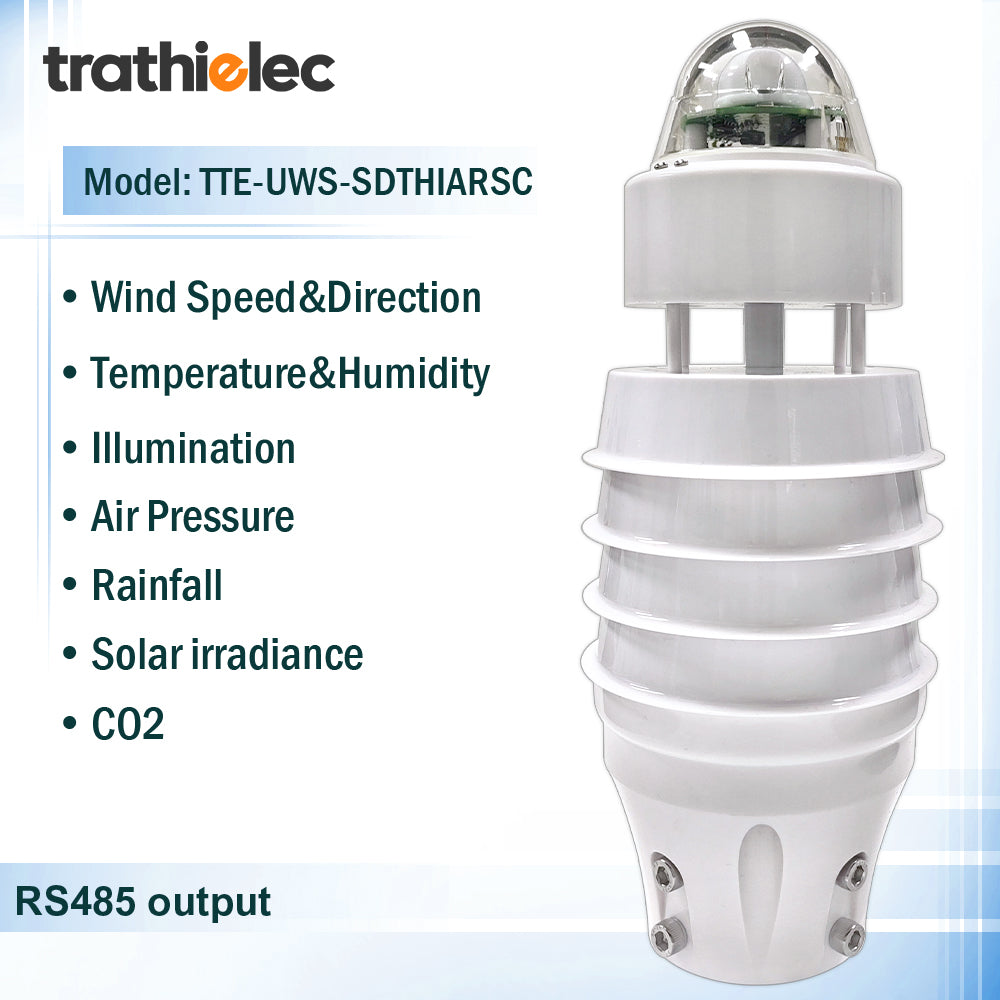

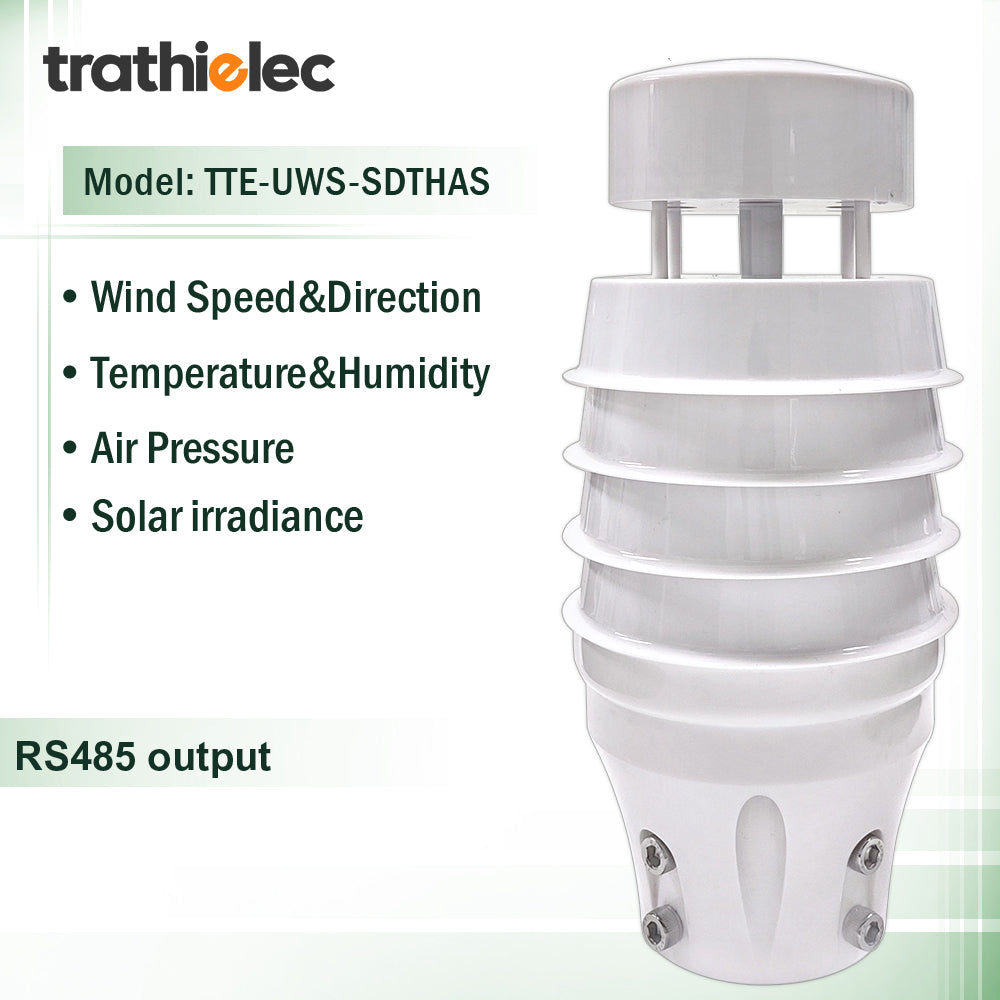

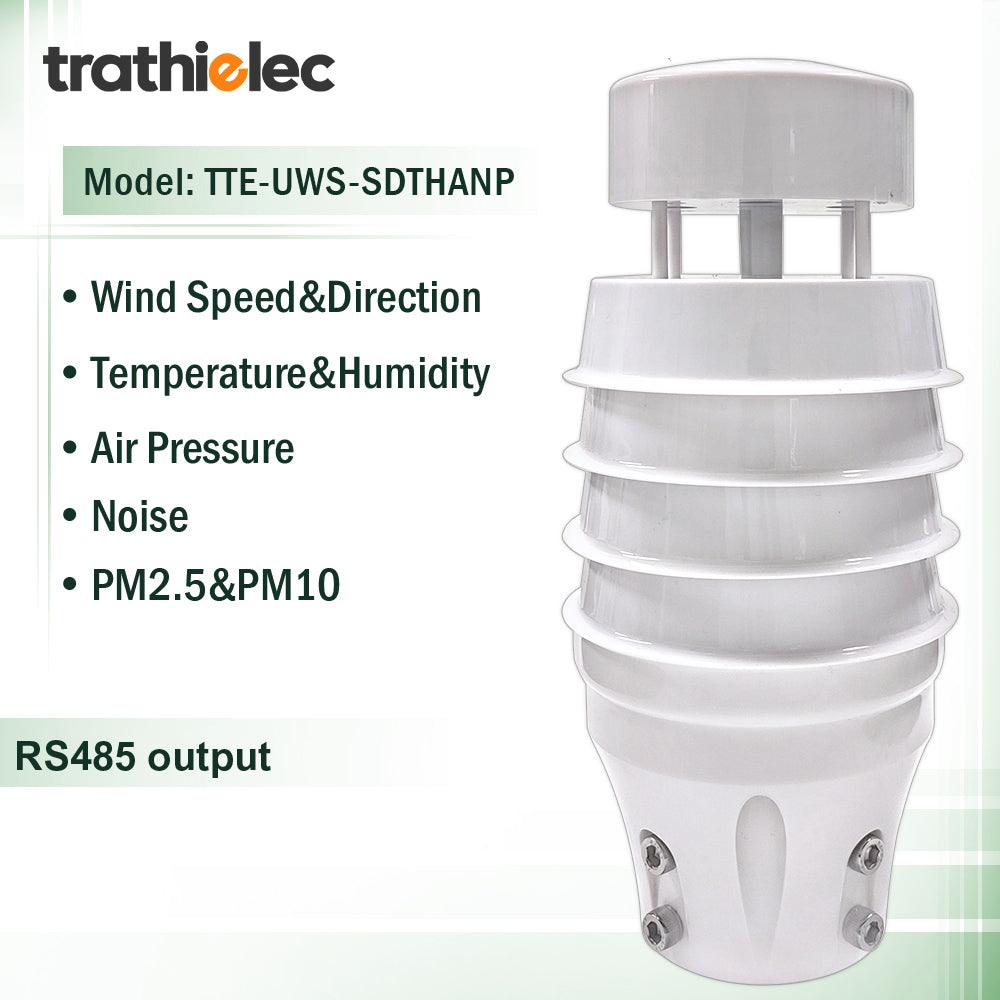

样式 TTE-UWS-SDTHAVariant sold out or unavailable TTE-UWS-SDTHRVariant sold out or unavailable TTE-UWS-SDTHAIVariant sold out or unavailable TTE-UWS-SDTHASVariant sold out or unavailable TTE-UWS-SDTHARVariant sold out or unavailable TTE-UWS-SDTHAIRVariant sold out or unavailable TTE-UWS-SDTHARSVariant sold out or unavailable TTE-UWS-SDTHANPVariant sold out or unavailable TTE-UWS-SDTHCVariant sold out or unavailable TTE-UWS-SDTHACVariant sold out or unavailable TTE-UWS-SDTHAICVariant sold out or unavailable TTE-UWS-SDTHAIRCVariant sold out or unavailable TTE-UWS-SDTHPIARSVariant sold out or unavailable TTE-UWS-SDTHNIARSCVariant sold out or unavailable TTE-UWS-SDTHIARSCVariant sold out or unavailable

Quantity

(0 in cart)

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

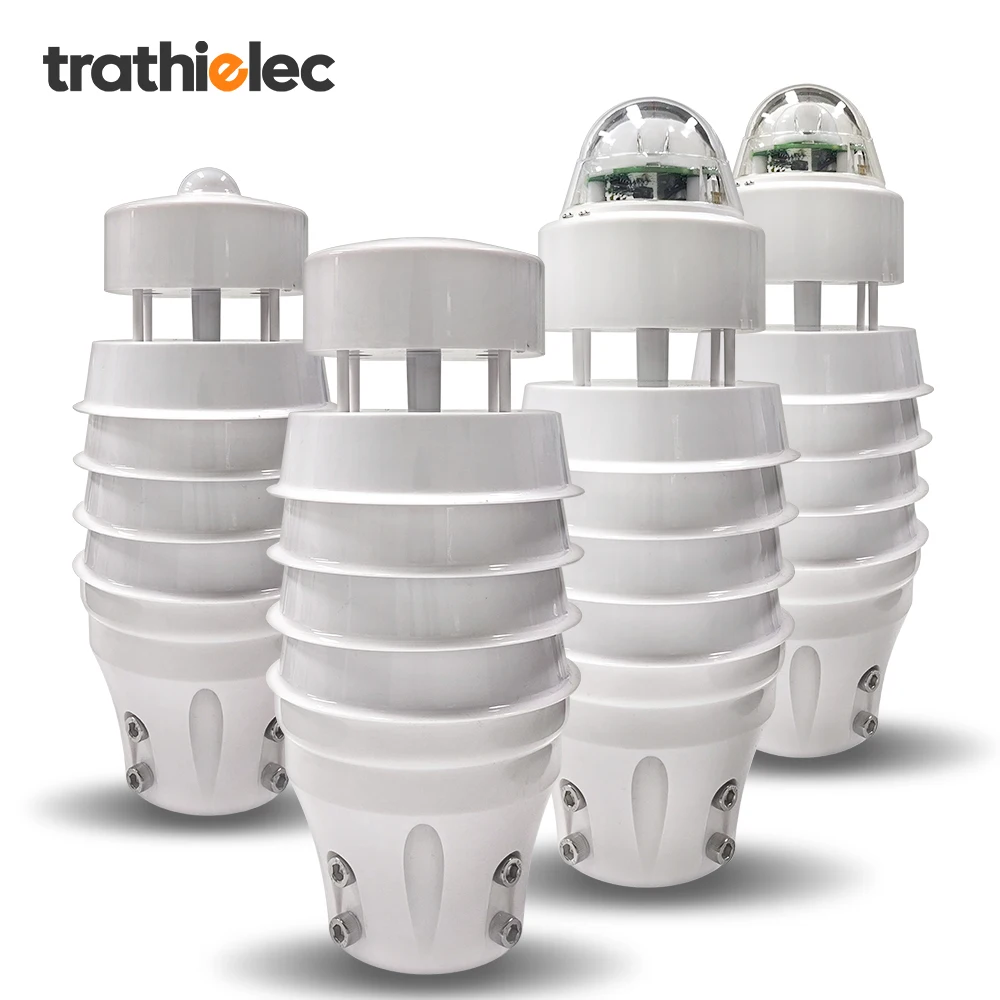

RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.5 Pressure Light Rainfall Small Weather Station

Parameters measuring

This small integrated weather station can be widely used in environmental detection, integrating wind speed, wind direction, temperature and humidity, noise collection, PM2.5 and PM10, atmospheric pressure, light, and accumulated rainfall.

It adopts standard MODBUS-RTU protocol, RS485 output, and the communication distance can reach up to 2000m. The data can be uploaded to the customer's monitoring software or PLC, HMI by RS485.

It is widely used in wind speed and wind direction measurement in the fields of meteorology, ocean, environment, airport, port, laboratory, industry, agriculture and transportation.

Features

Adopt multi-collection device integrated design, easy to install.
Wind speed and direction are measured by ultrasonic, no angle limit, 360° omnidirectional, and data of wind speed and wind direction can be obtained at the same time.
Noise acquisition, accurate measurement, range up to 30dB~130dB.
Simultaneous acquisition of PM2.5 and PM10, range: 0-1000ug/m3, resolution 1ug/m3, unique dual-frequency data acquisition and automatic calibration technology, consistency up to ±10%.
Measure the ambient temperature and humidity, the measuring unit is imported from Switzerland, and the measurement is accurate.
Wide range of 0-120Kpa pressure range, can be applied to various altitudes.
Adopt special 485 circuit, stable communication.

Product description

Wind speed	Measuring range: 0~40m/s, start at 0.5m/s Accuracy: ±0.5+2%FS Response time: 1s
Wind direction	Measuring range: 0~359° Accuracy: ±3° Response time: 1s
Humidity	Measuring range: 0~99%RH Accuracy: ±3%RH (60%RH,25℃) Long-term stability: ≤1%/year Response time: ≤1s
Temperature	Measuring range: -40℃~+80℃ Accuracy: ±0.5℃（25℃） Long-term stability: ≤0.1℃/year Response time: ≤1s
Atmospheric pressure	Measuring range: 0-130Kpa Accuracy: ±0.15Kpa@25℃101Kpa Long-term stability: -0.1Kpa/year Response time: ≤1s
Noise	Measuring range: 30dB~120dB Accuracy: ±0.5dB Long-term stability: ≤3db/year Response time: ≤1s
PM10/PM2.5	Measuring range: 0-1000ug/m3 Accuracy: ±3%FS（@100μg/m3、25℃、50%RH） Particulate counting efficiency: 50%@0.3μm, 98%@>=0.5μm Long-term stability: ≤1%/year Response time: ≤90s
Illumination	Measuring range: 0~200000 Lux Accuracy: ±7% (25℃) Long-term stability: ≤5%/year Response time: ≤0.1s
Rainfall	Accuracy: ±5% Resolution: 0.1mm Maximum instantaneous rainfall: 24mm/min Rain sensing diameter: 6cm
Solar irradiance	Measuring range: 0~1800W/m² Accuracy: ≤±3%@150W/m² Long-term stability: ±3% Response time: ≤10s

Base parameter

DC power Supply	10-30vdc
Maximum power consumption	0.7W (12V)
Working environment	-40～80℃，0～95%RH
Protection level	IP54
Output	RS485 (Modbus RTU protocol)
