MB(II)-DI Digital Input with Optocoupler lsolation
MB(II)-DI Digital Input with Optocoupler lsolation
Couldn't load pickup availability

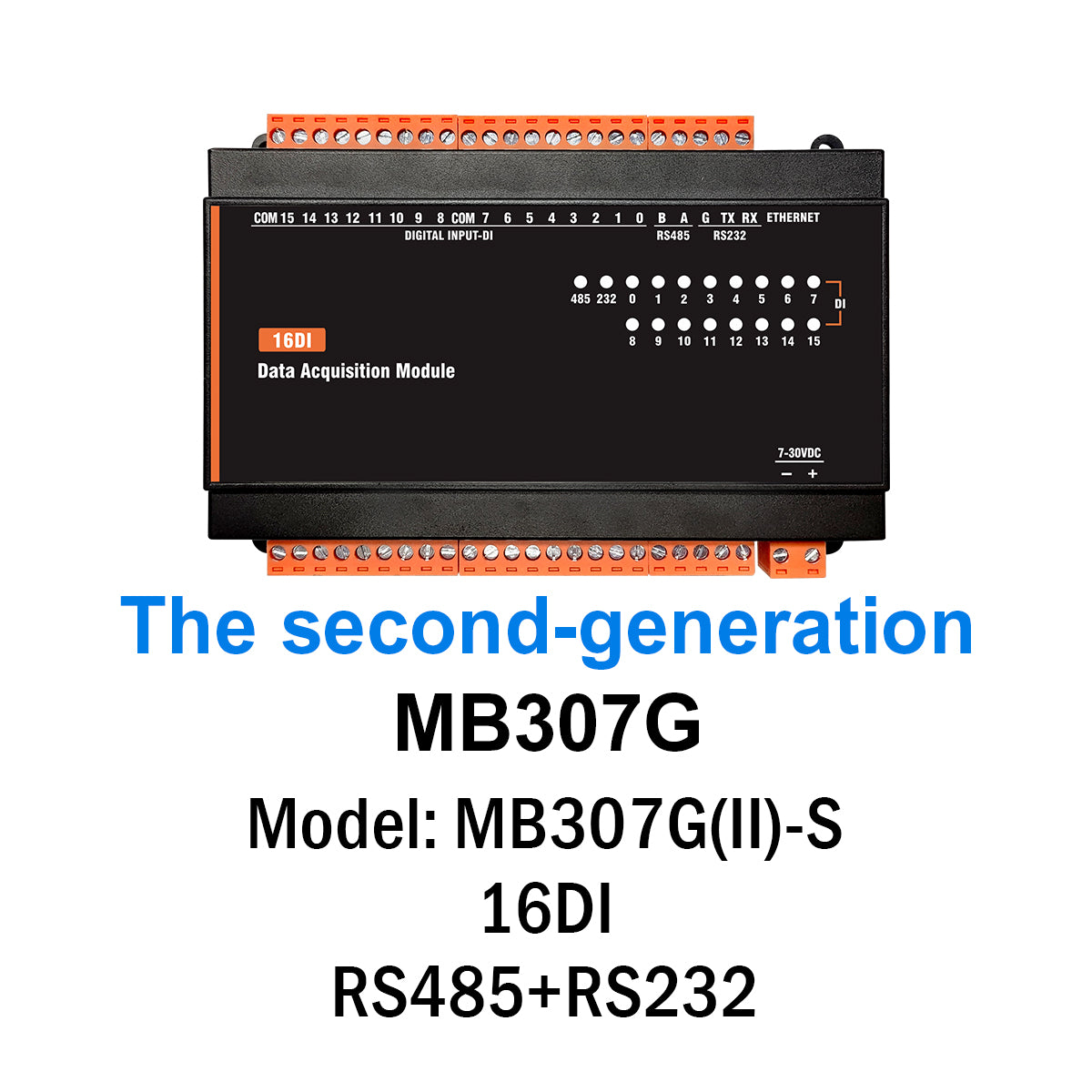

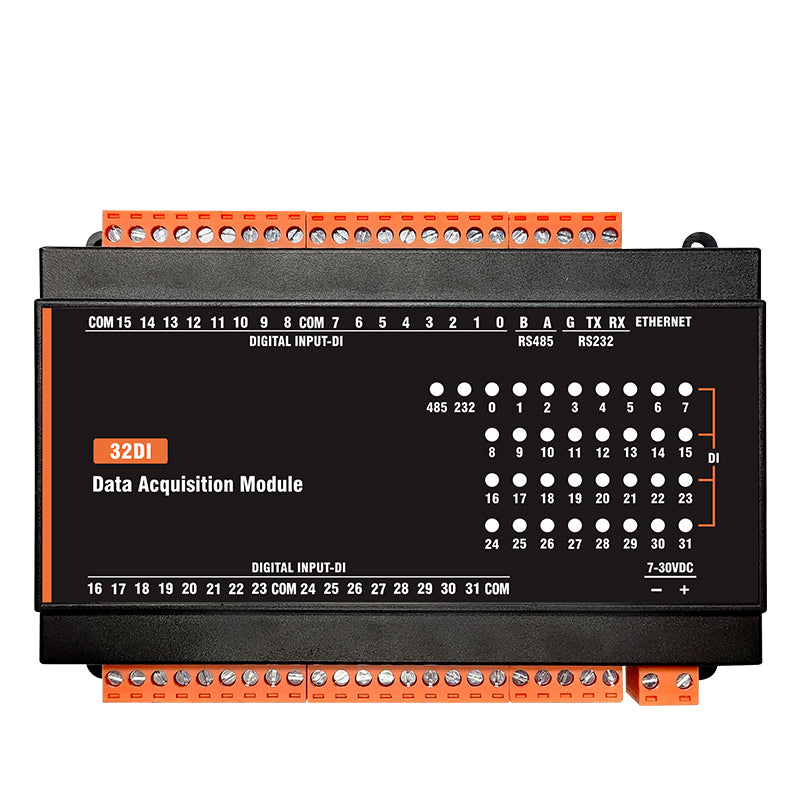

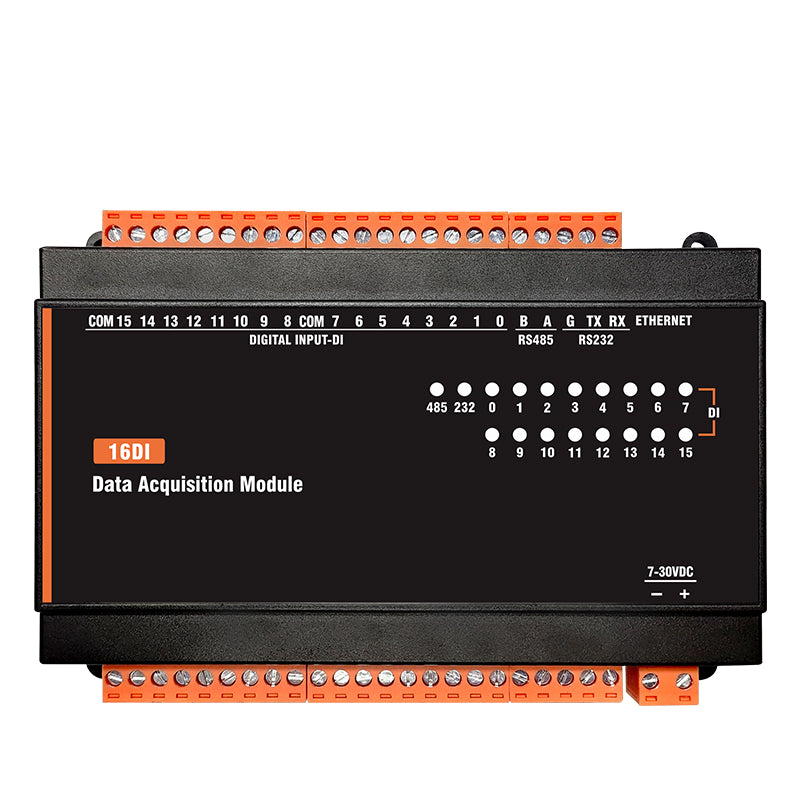

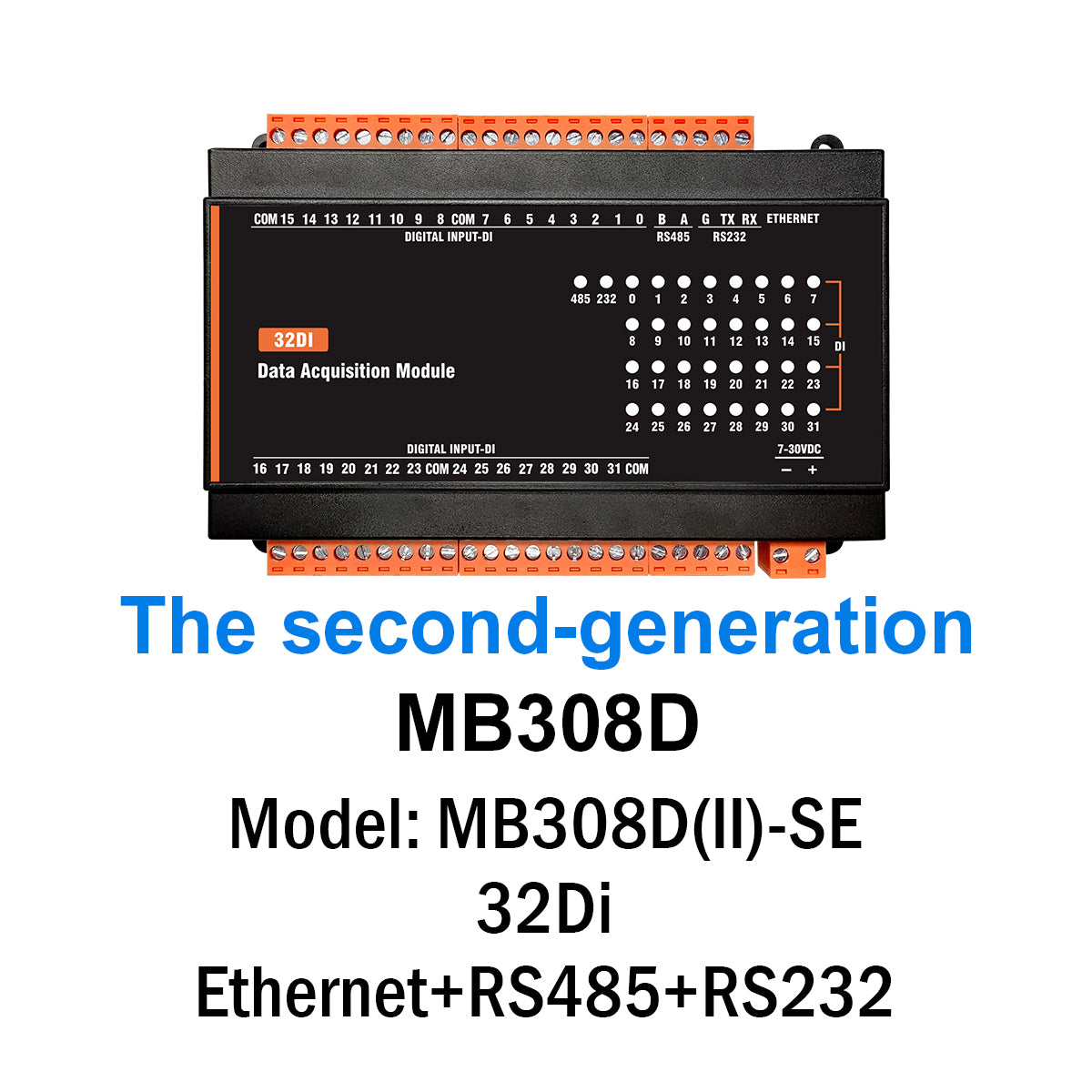

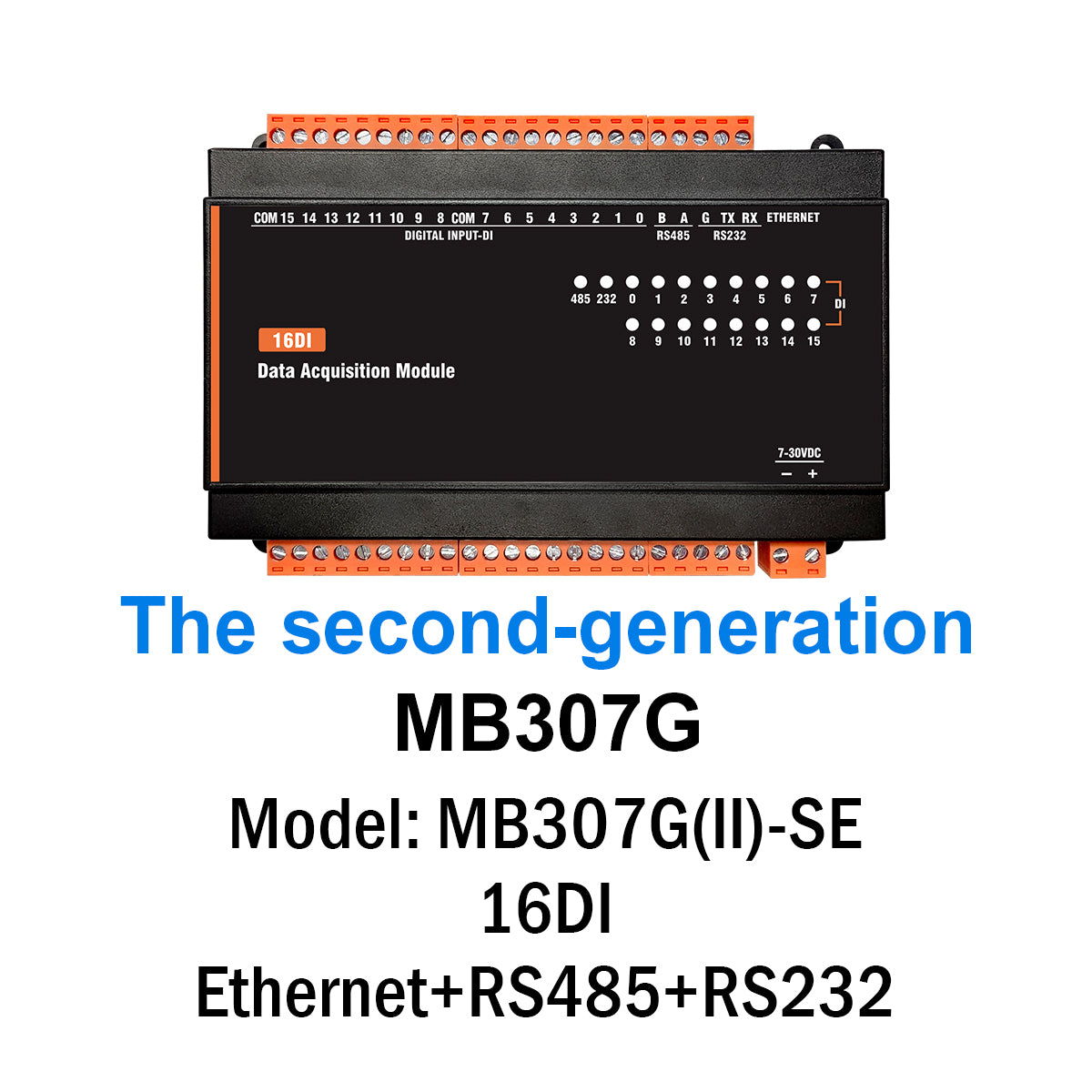

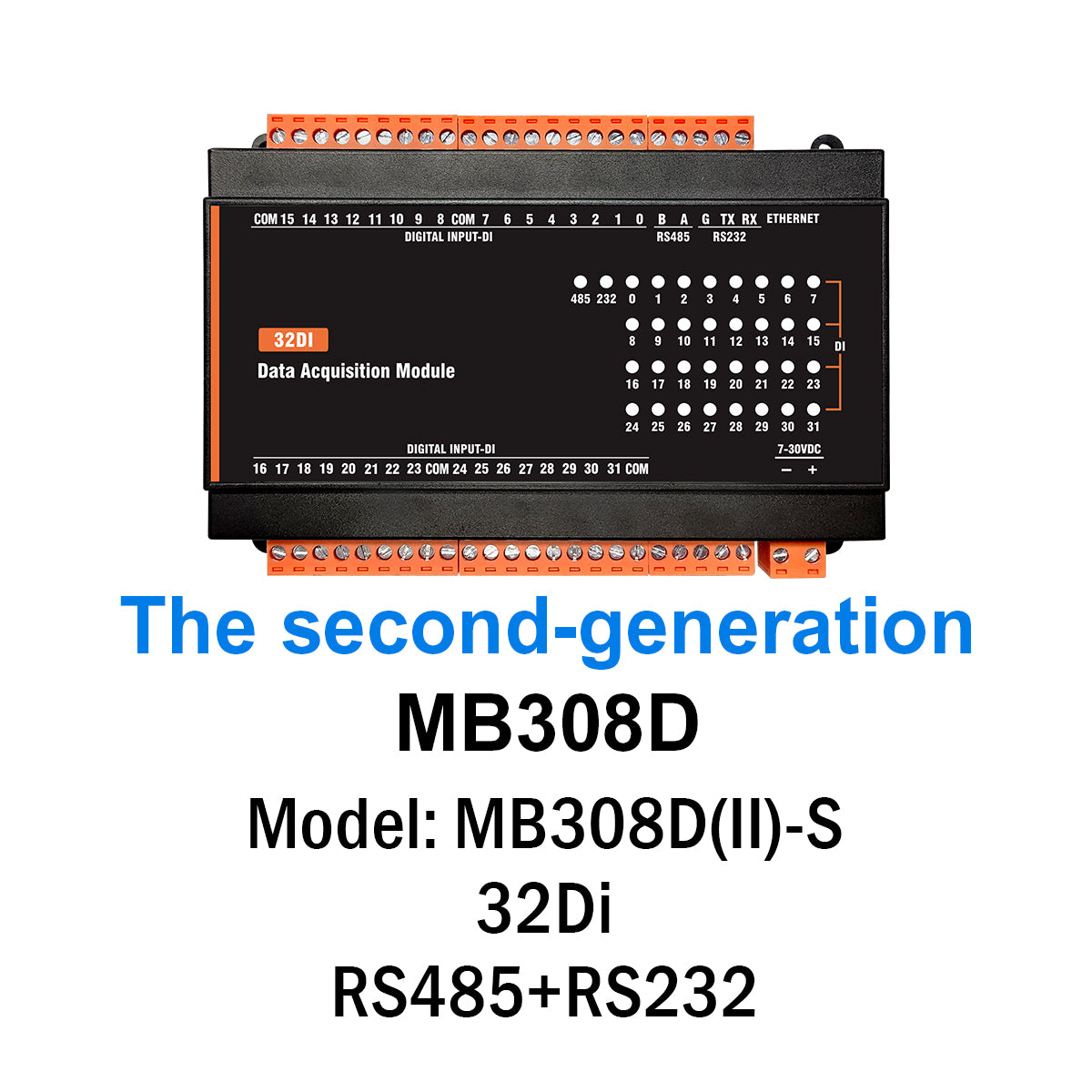

MB(II)-DI Digital Input with Optocoupler lsolation
Modbus lO module series with multi-channel DI/DO/AI/PT100 input. widely used in buildings, HVAC, fire, water, petrochemical, environmental protection and other industries, for most systems integrators and automation companies, it is a highly cost-effective, reliable data acquisition module. Thismodule is designed for the whole industry, power supply, signal inputs and outputs, optional RS485, RS232 and Ethernet port, interference protection designed to ensure data accuracy and reliability.
Configuration port
size
158*94*38mm
Options:
System parameters
|
CPU |
32-bit ATMEL ARM, 72MHZ |
|
OS |
GCOS,10ms scheduling mechanism |
|
Power |
7-35VDC @2W, power supply reverse protection, isolation design |
|
Installation |
DIN rail mounting or screw fixing |
|
Working Environment |
-40℃~85℃,5%~95%RH(non-condensing) |
|
Protection |
IP20 |
|
Watchdog |
1.5m guard |
Series port parameters
|
Port type |
1RS485 & 1RS232 |
|
Protection |
DCDC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection |
|
Baud rate |
1200~115200,default 9600 |
|
Parity |
Even, Odd, None |
|
start bit |
1 bit |
|
data bits |
8 bit |
|
Stopbits |
1,2bits |
|
Protocol |
MODBUS RTU |
|
default |
9600.N.8.1,slave id is 1 |
Ethernet
|
Port type |
RJ45 |
|
Communicate protocol |
MODBUS TCP,MODBUS UDP |
|
Communicate rate |
1000 times/s |
|
bandwidth |
10M/100Mbps |
|
IP address |
192.168.1.75 |
|
Port |
502 |
Config software
