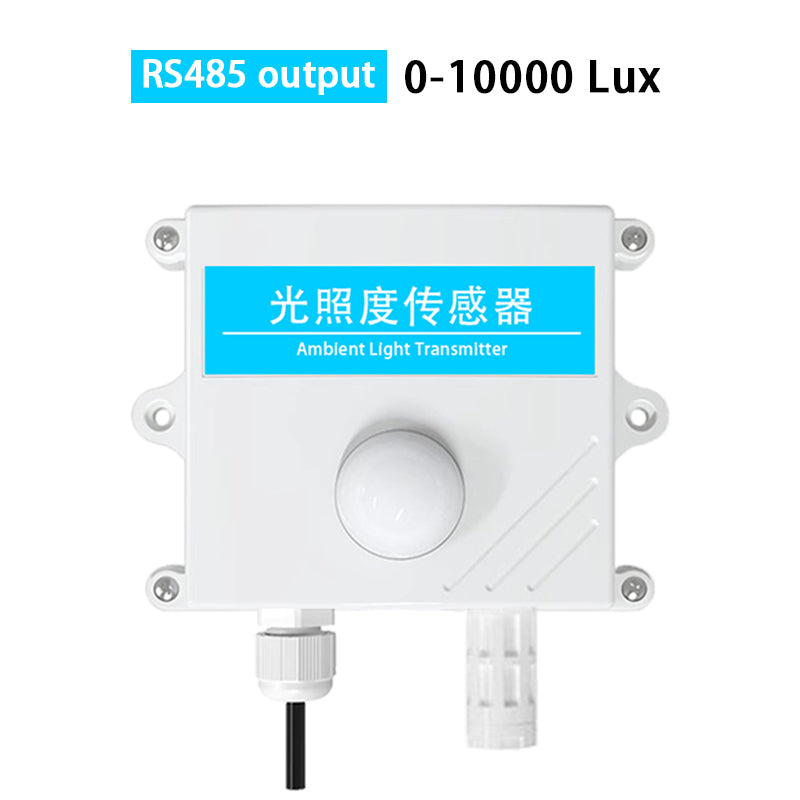

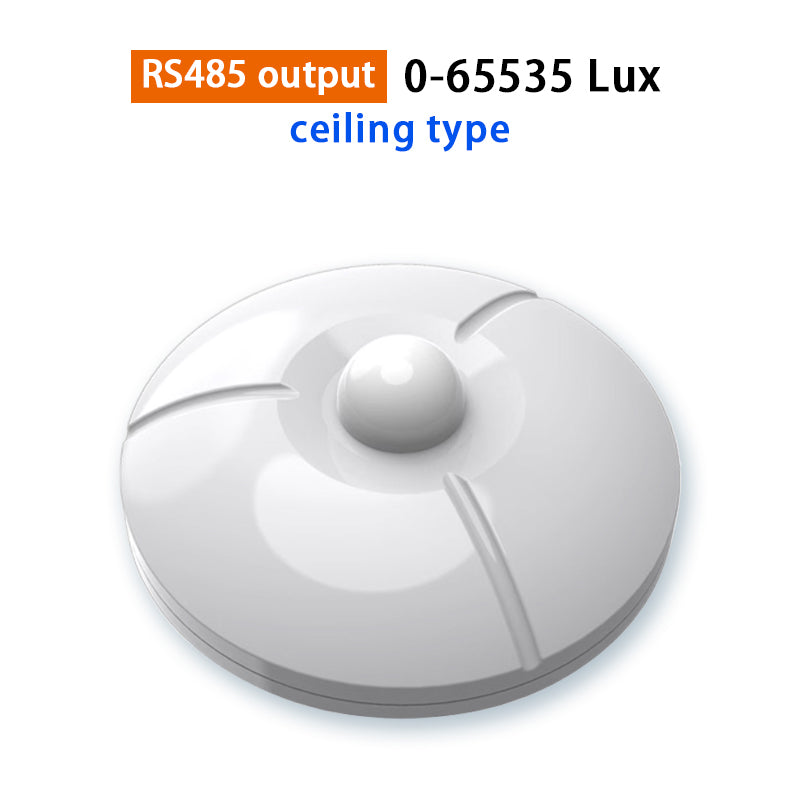

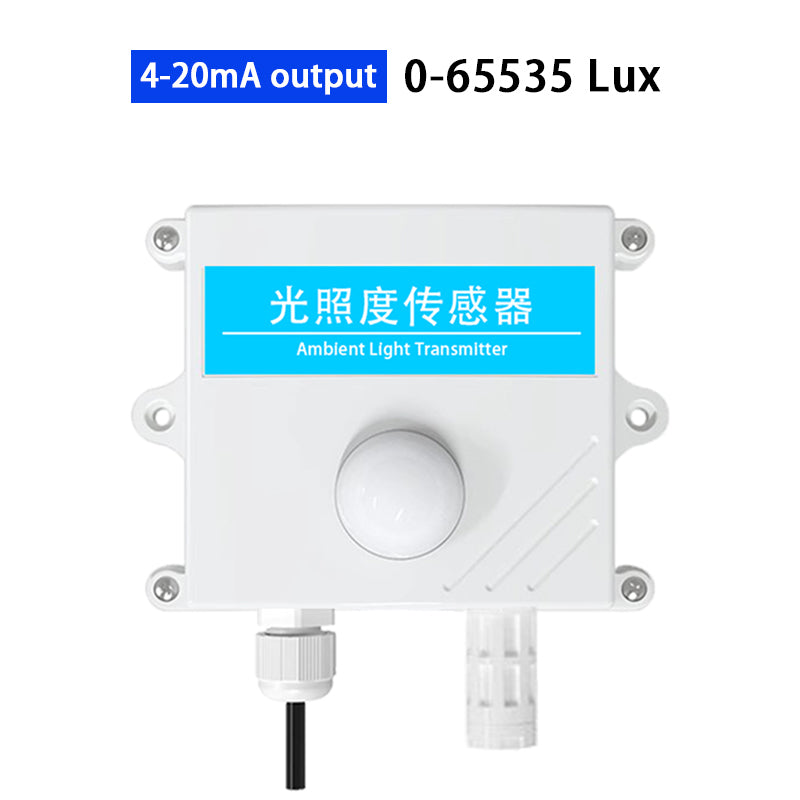

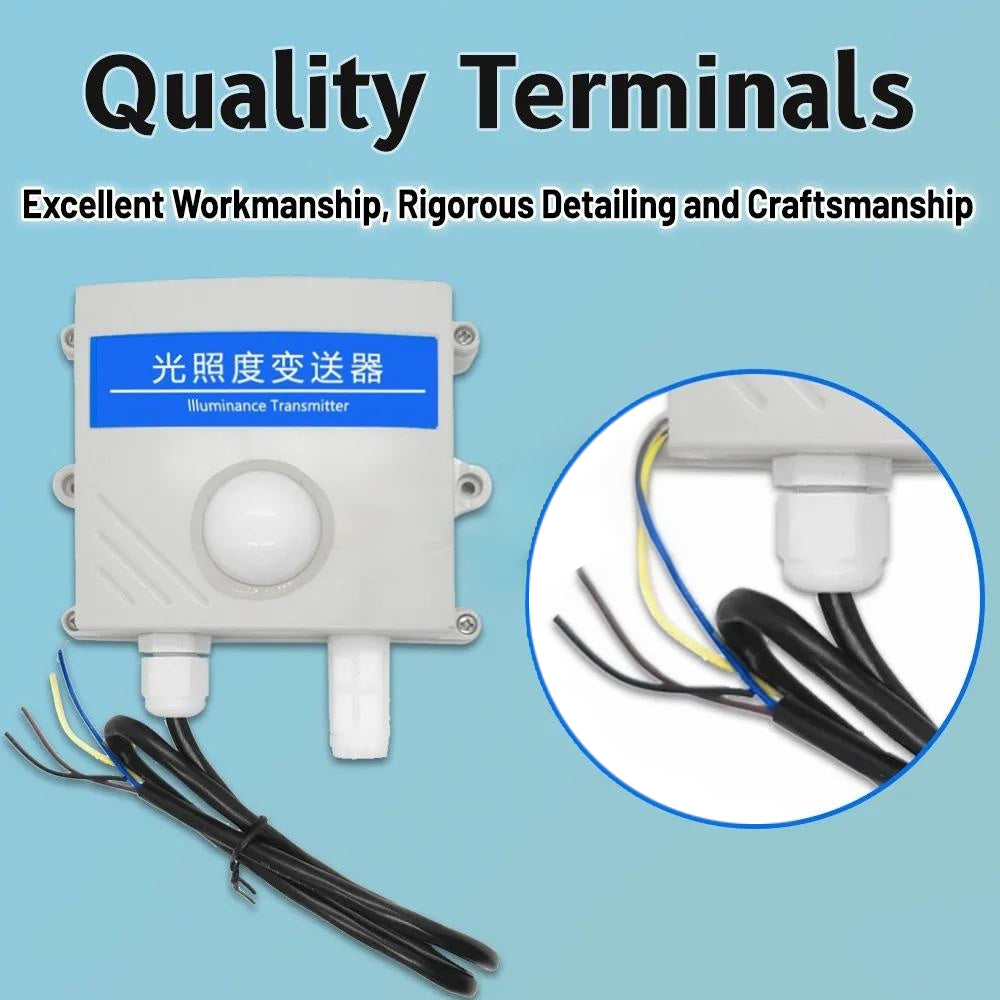

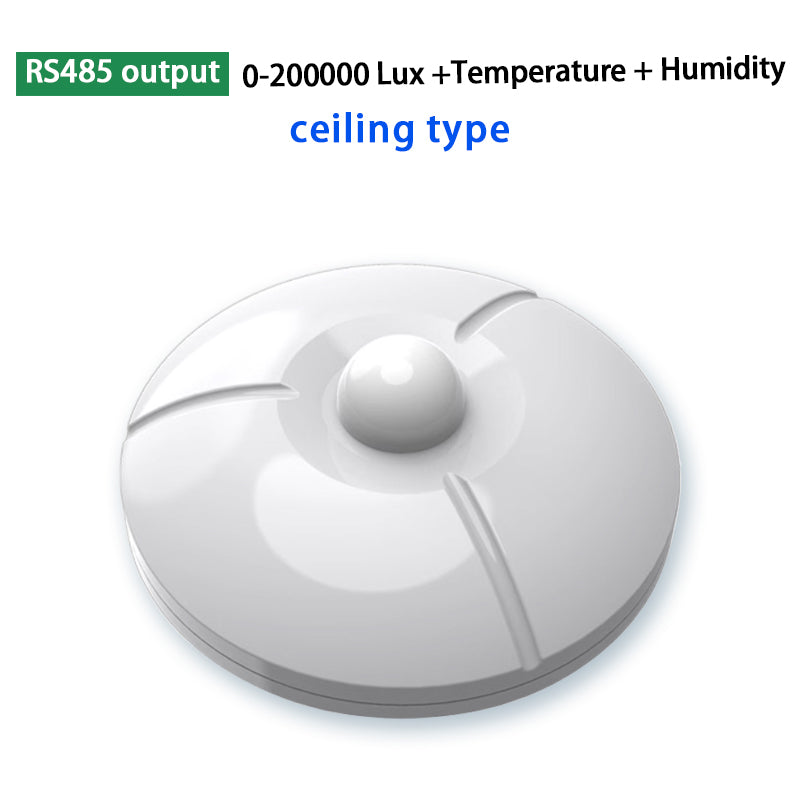

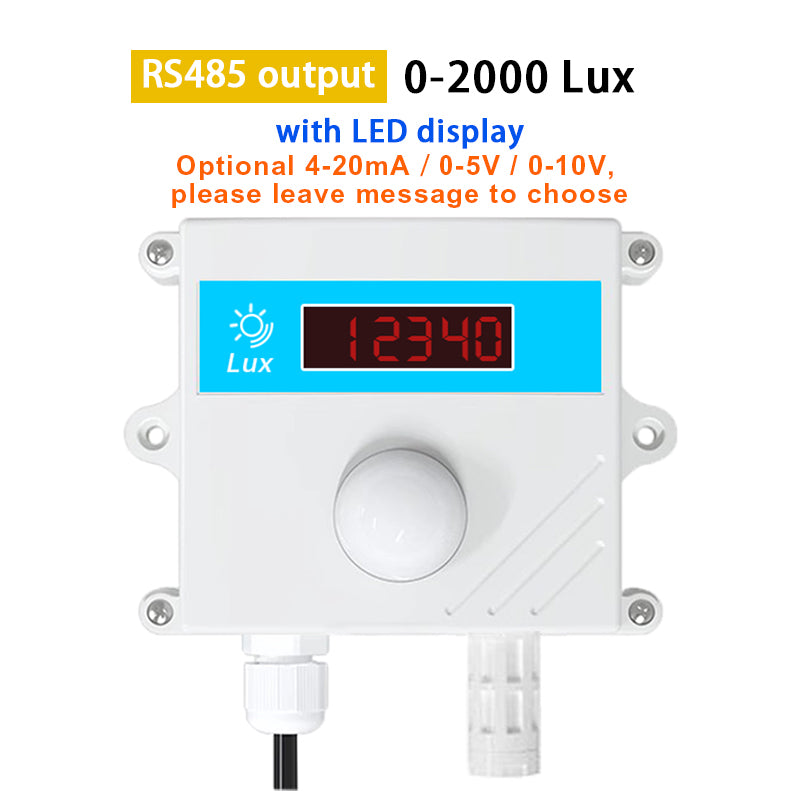

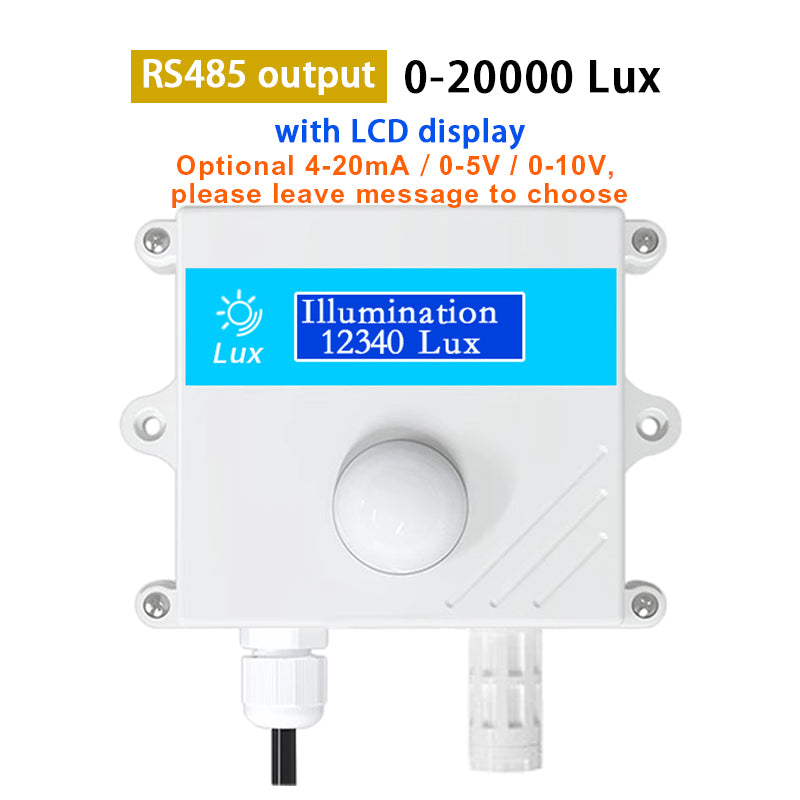

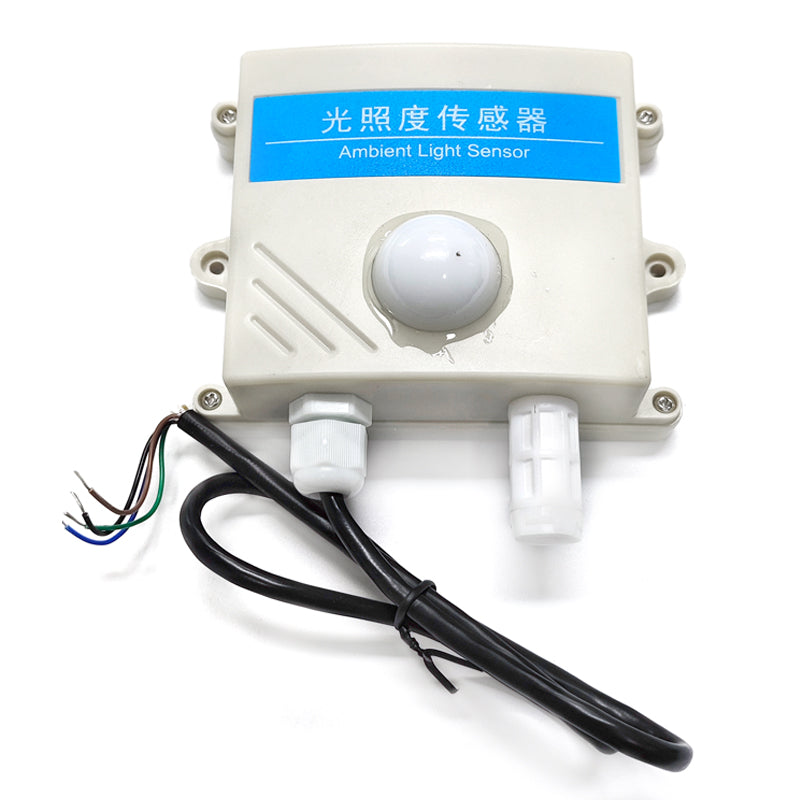

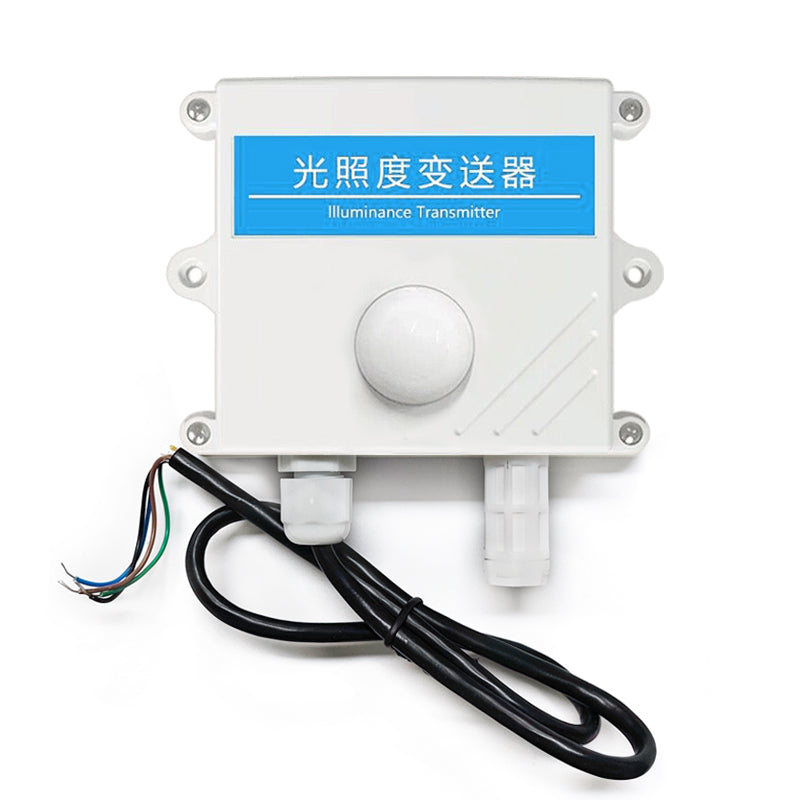

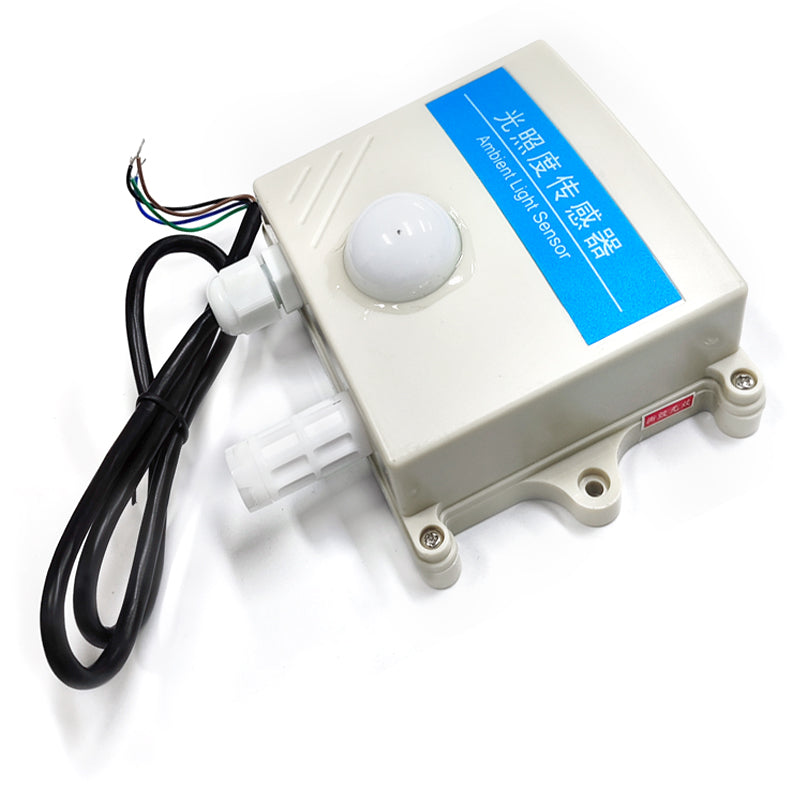

Light sensor 0-10V 0-5V 4-20mA RS485 200000Lux 65535Lux industrial intensity illumination acquisition transmitter

the transmitter is an optical precision photosensitive transmitter, and the output value unit of measurement is Lux, The use of wall-mounted waterproof housing, wall-mounted installation, high level of protection. 4-20ma/0-10v/0-5v A variety of analog output signal optional, product power supply for 10-30V wide voltage power supply, mainly used in agricultural greenhouses, flower culture greenhouse, Agricultural field, electronic equipment production lines, such as the need for illumination monitoring occasions.

Features

measuring range of high precision illumination measurement 0-6 million Lux, 0-20 million Lux Optional.
4-20ma/0-10v/0-5v multiple analog output signals optional
wall-mounted waterproof shell, high protection level, can be used for outdoor or harsh on-site environment
10-30V DC wide voltage power supply

Specification

DC power Supply (default)	10-30vdc(0~10v -type products can only DC 24V power supply)
Maximum power consumption	Current output	1.2W
Maximum power consumption	Voltage output	1.2W
Precision	Light intensity	±7% (°)
Light intensity Range	0~20 million 0~65535lux
Working environment	-40 ° ~+60 °, 0%RH~80%RH
Long-term stability	Light intensity	≤ 5%/y
Response time	Light intensity	0.1s
Output signal	Current output	4ma~20ma
Output signal	Voltage output	0~5v/0~10v
Load capacity	Voltage output	output resistor≤ 250Ω
Load capacity	Current output	≤ 600Ω

DC power Supply (default)	10-30vdc
Maximum power consumption	0.4W

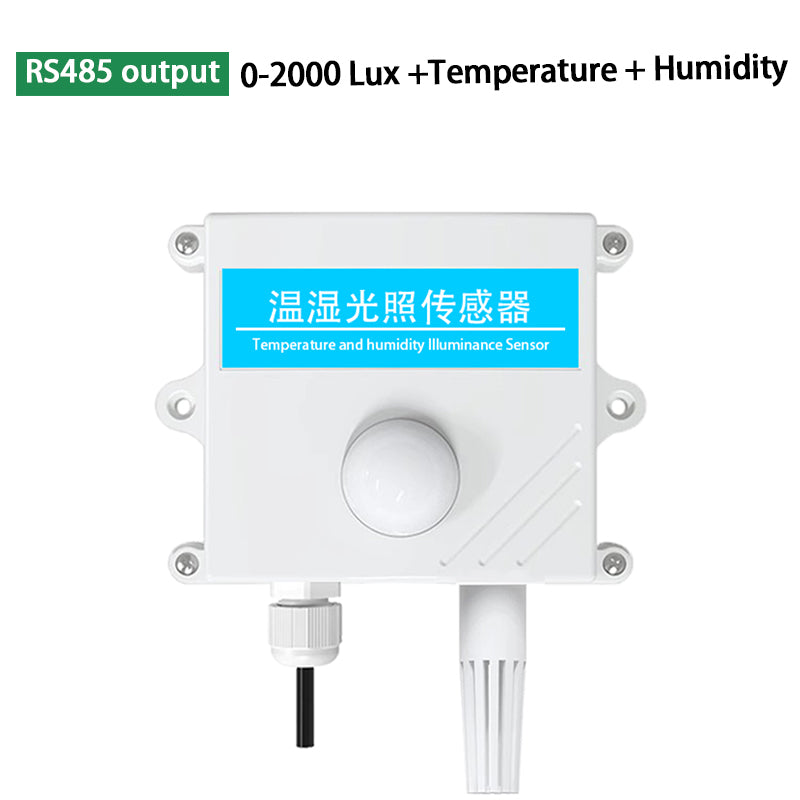

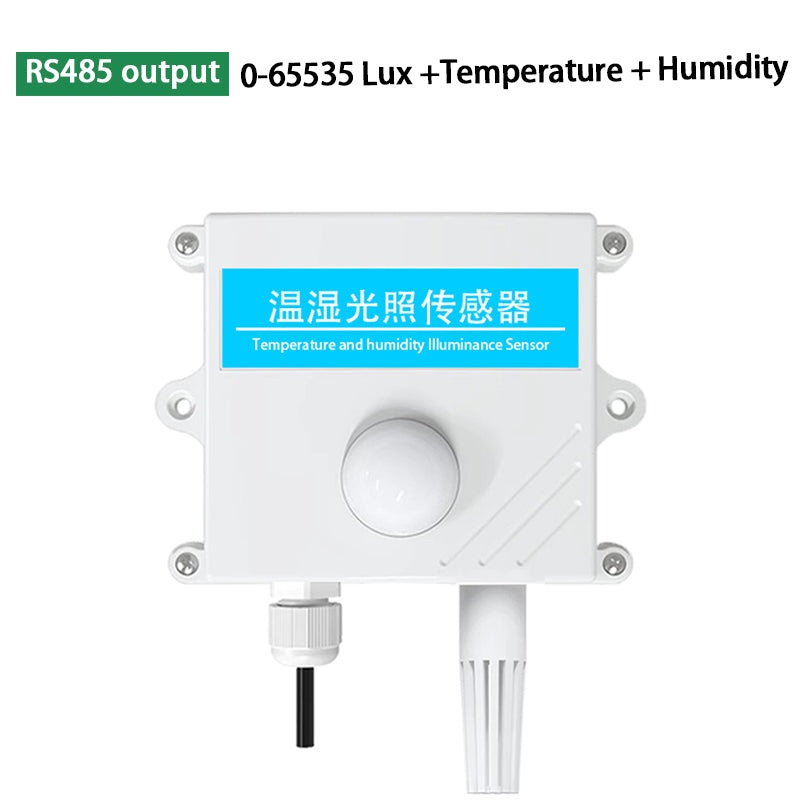

Precision	Humidity	±3%rh(5%rh~95%rh,25°)
	Temperature	±0.5 °( - °)
	Light intensity	±7% ( °)
Light intensity Range	0-65535lux ; 0-20 million Lux
Temperature and humidity measurement process	-40 ° ~+60 °, 0%RH~80%RH
Long-term stability	Temperature	≤ 0.1 ° /y
	Humidity	≤ 1%/y
	Light intensity	≤ 5%/y
Response time	Temperature	≤ 18s (1m/s wind speed)
	Humidity	≤ 6s (1m/s wind speed)
	Light intensity	0.1s
Output signal	RS485 (Modbus Protocol)
