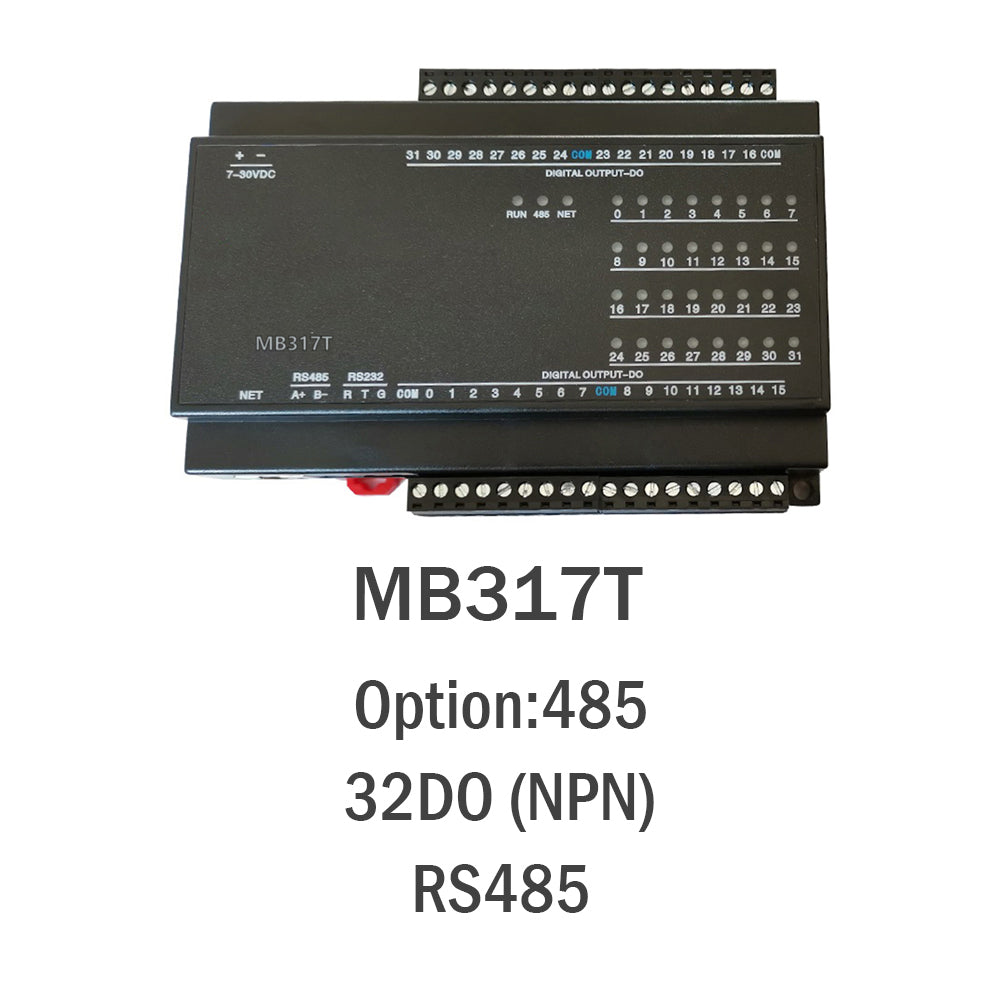

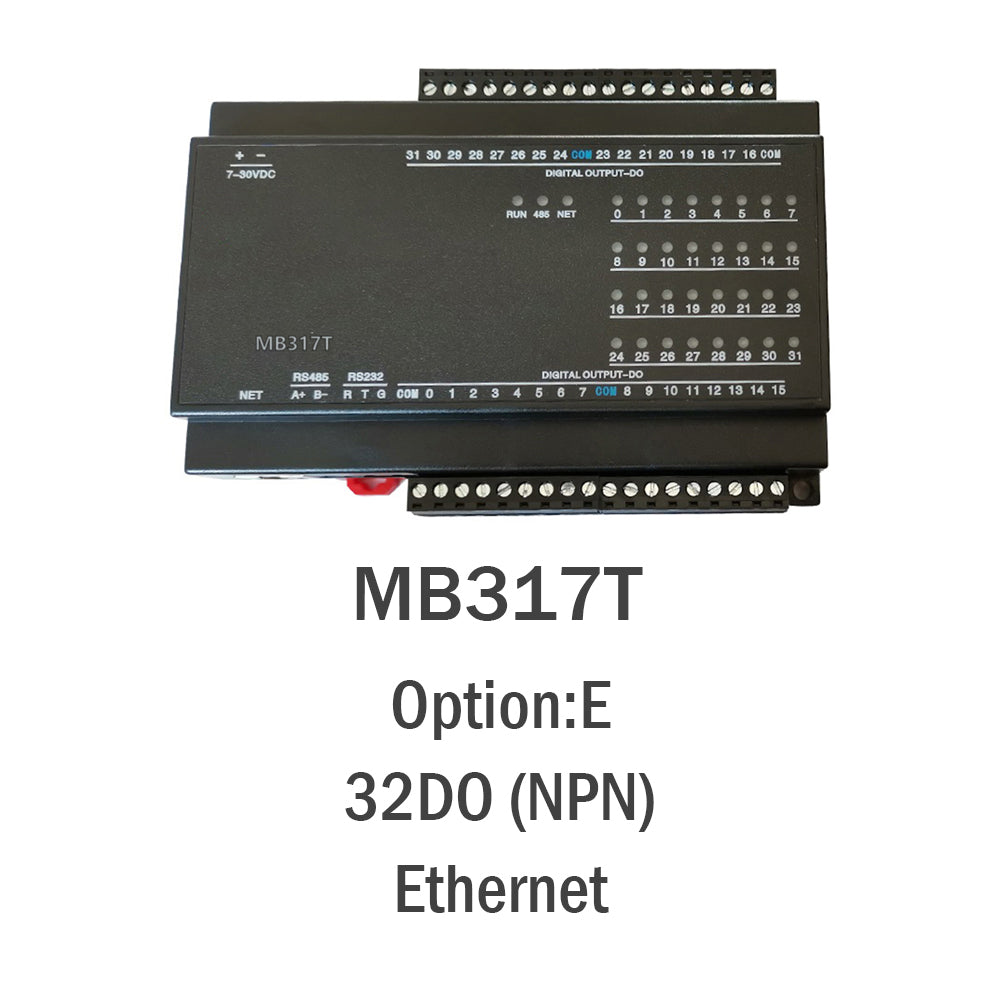

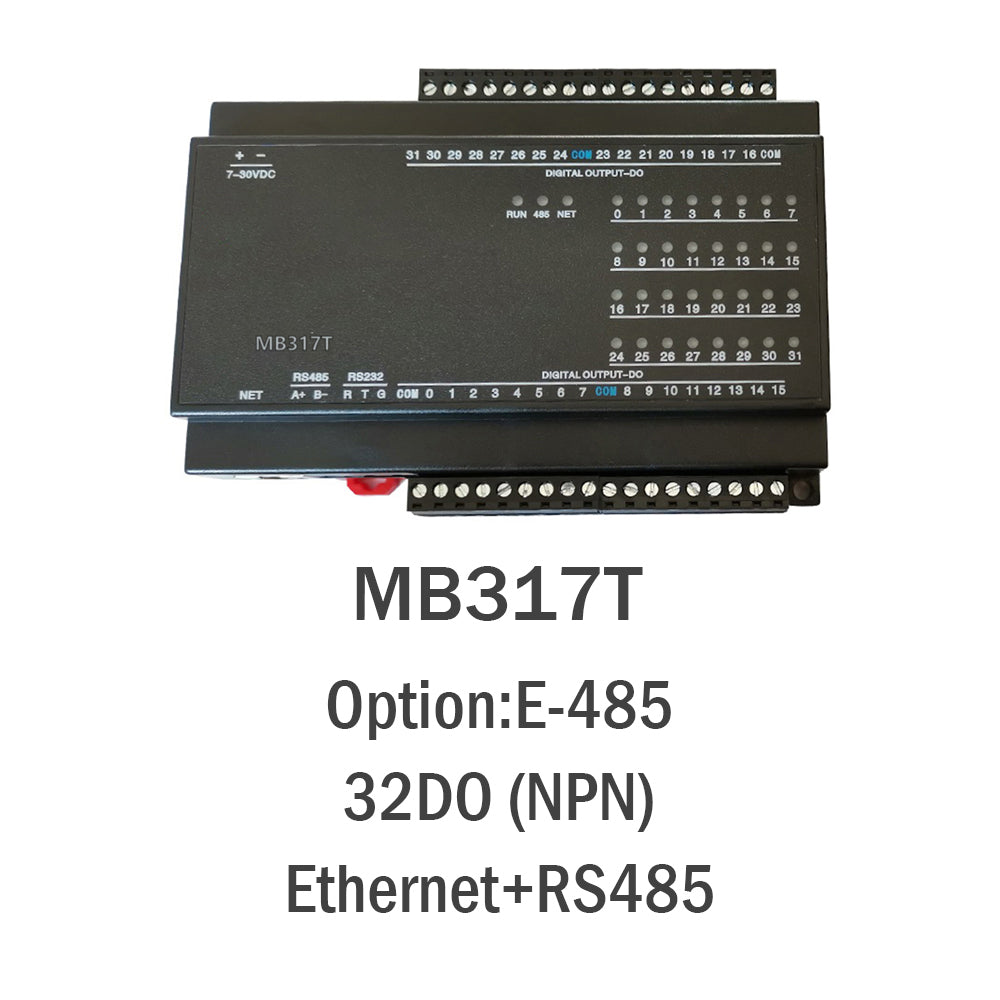

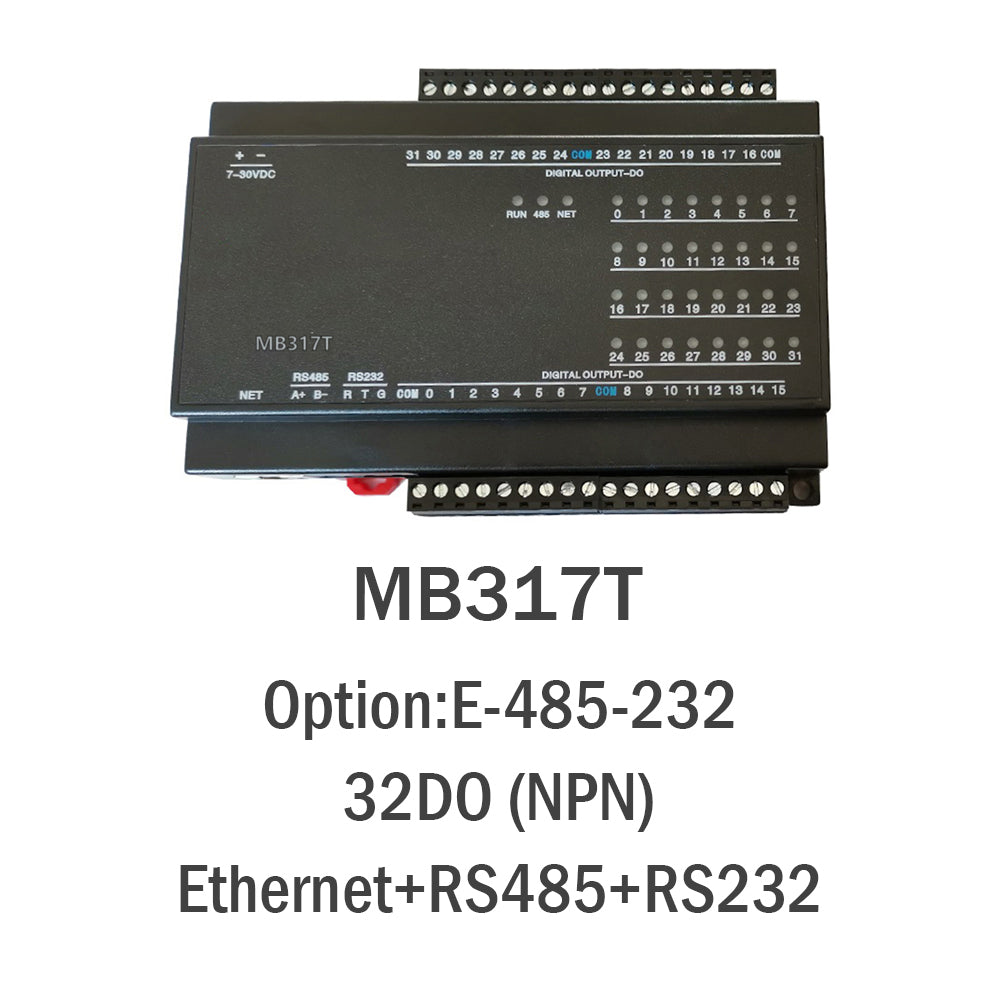

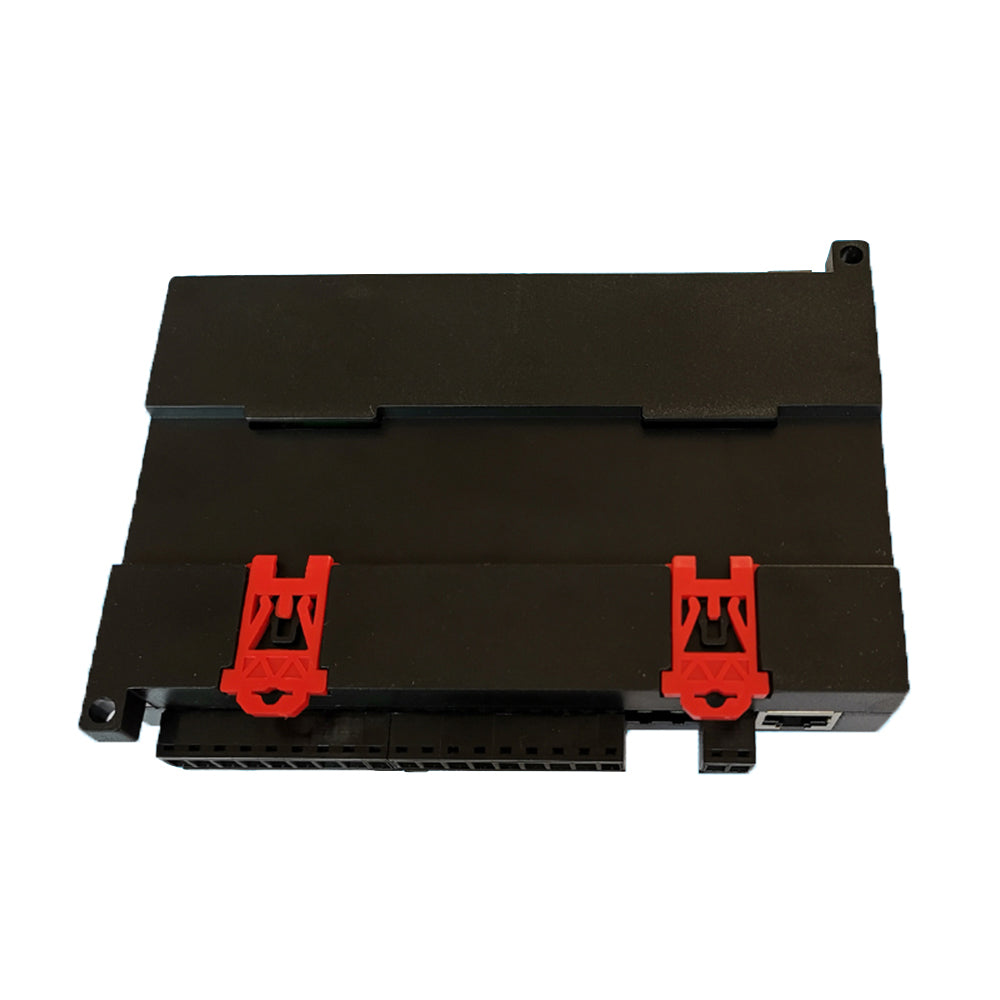

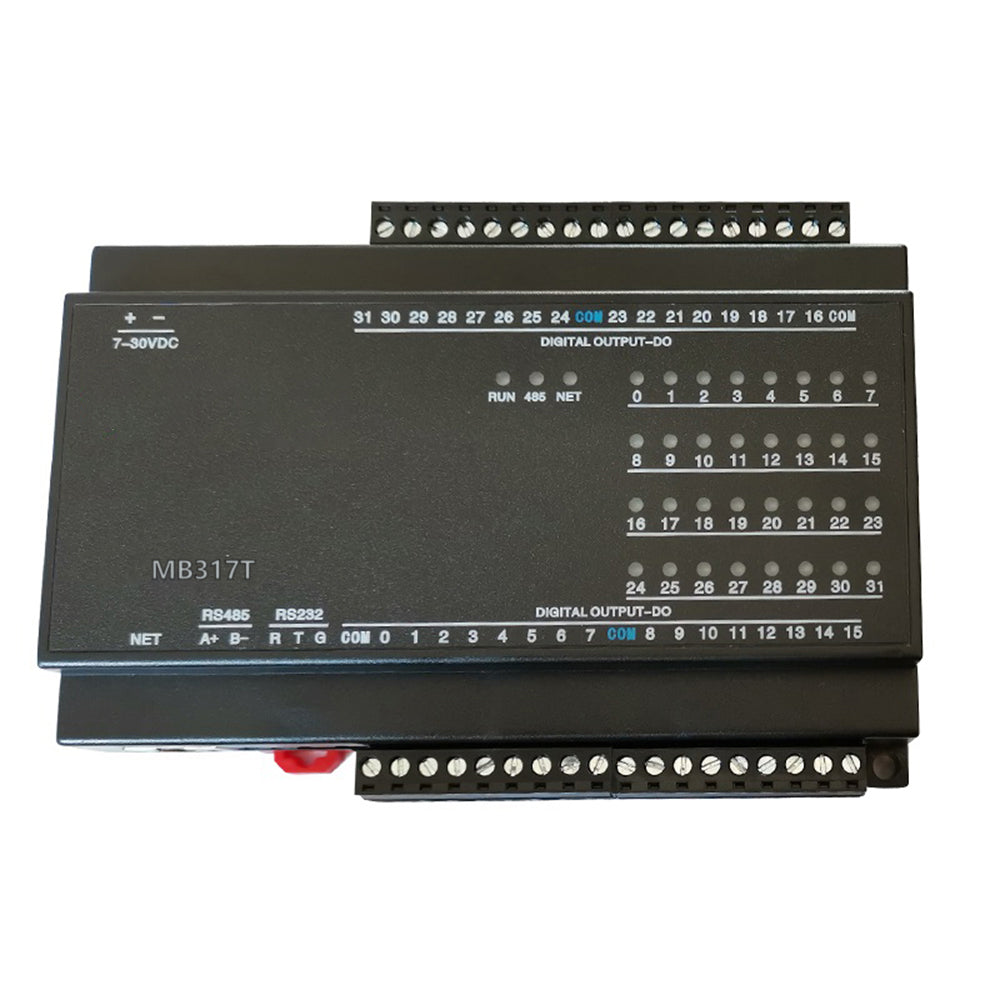

MB317T 32DO(NPN) 32-Channel Digital Output Transistor Output Modbus Controller
MB317T 32DO(NPN) 32-Channel Digital Output Transistor Output Modbus Controller
Couldn't load pickup availability
|
WT-MB series Modbus IO Module |
||
|
AI + AO |
||
|
MB307B |
8AI |
|
|
MB307J |
16AI |
|
|
MB308Z |
24AI |
|
|
MB308F |
32AI |
|
|
MB307C |
4AO |
|
|
MB307A |
8AI+4AO |
|
|
MB308J |
16AI+4AO |
|
|
MB308Q |
32AI+4AO |
|
|
DI + DO |
||
|
MB307G |
16DI |
|
|
MB308D |
32DI |
|
|
MB307N |
4DO |
|
|
MB328A |
16DO |
|
|
MB308M |
24DO |
|
|
MB307P |
8DI+4DO |
|
|
MB307E |
8DI+8DO |
|
|
MB328B |
8DI+16DO |
|
|
MB308K |
16DI+12DO |
|
|
MB308L |
24DI+6DO |
|
|
AI + AO + DI + DO |
||
|
MB307F |
8AI+8DI |
|
|
MB308W |
8AI+24DI |
|
|
MB308U |
16AI+16DI |
|
|
MB308H |
24AI+8DI |
|
|
MB308C |
24AI+6DO |
|
|
MB307L |
8AI+4DO |
|
|
MB308Y |
16AI+12DO |
|
|
MB307K |
4AO+8DI |
|
|
MB307R |
4AO+6DO |
|
|
MB307D |
8AI+8DI+8DO |
|
|
MB308E |
8AI+8DI+12DO |
|
|
MB308T |
8AI+16DI+6DO |
|
|
MB308R |
16AI+8DI+6DO |
|
|
MB308N |
8AI+4AO+8DI+8DO |
|
|
MB308V |
8AI+4AO+8DI+12DO |
|
|
MB308P |
8AI+4AO+16DI+6DO |
|
|
MB308S |
16AI+4AO+8DI+6DO |
|
|
MB328C |
8AI+16DO |
|
|
DI + DO(NPN) |
||
|
MB317H |
16NPN |
|
|
MB317T |
32NPN |
|
|
MB317E |
8DI+8NPN |
|
|
MB317F |
16DI+16NPN |
|
|
MB317A |
8AI+8NPN |
|
|
MB317D |
8AI+8DI+8NPN |
|
|
MB317Q |
16AI+8DI+8NPN |
|
|
PT100 + AI (4-20mA / 0-5V / 0-10V) + AO + DI + DO) |
||
|
MB318A |
4PT |
|
|
MB318B |
4PT+4AI |
|
|
MB318G |
4PT+3AI+8DI+8DO |
|
|
MB318F |
4PT+4AI+4AO+8DI+6DO |
|
|
MB318C |
8PT |
|
|
MB318M |
4PT+11AI+16DI |
|
|
MB318L |
8PT+16AI |
|
|
MB318W |
8PT+8AI+8DI |
|
|
MB318K |
8PT+8DI+6DO |
|
|
MB318D |
12PT |
|
|
MB318E |
12PT+4AI |
|
|
MB318S |
4PT+11AI+8DI+6DO |
|
MB317T 32DO(NPN) 32-Channel Digital Output Transistor Output Modbus Controller
Wiring diagram
Size
Options:
Digital output
|
Output type |
NPN transistor output |
|
Isolation |
opt coupler isolation |
|
Load voltage |
5-30VDC |
|
Load current |
100mA |
System parameters
|
CPU |
32-bit ATMEL ARM, 72MHZ |
|
OS |
GCOS,10ms scheduling mechanism |
|
Power |
7-35VDC @2W, power supply reverse protection, isolation design |
|
Installation |
DIN rail mounting or screw fixing |
|
Working Environment |
-40℃~85℃,5%~95%RH(non-condensing) |
|
Protection |
IP20 |
|
Watchdog |
1.5m guard |
Series port parameters
|
Port type |
1RS485 & 1RS232 |
|
Protection |
DCDC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection |
|
Baud rate |
1200~115200,default 9600 |
|
Parity |
Even, Odd, None |
|
start bit |
1 bit |
|
data bits |
8 bit |
|
Stopbits |
1,2bits |
|
Protocol |
MODBUS RTU |
|
default |
9600.N.8.1,slave id is 1 |
Ethernet
|
Port type |
RJ45 |
|
Communicate protocol |
MODBUS TCP,MODBUS UDP |
|
Communicate rate |
1000 times/s |
|
bandwidth |
10M/100Mbps |
|
IP address |
192.168.1.75 |
|
Port |
502 |
Config tool
