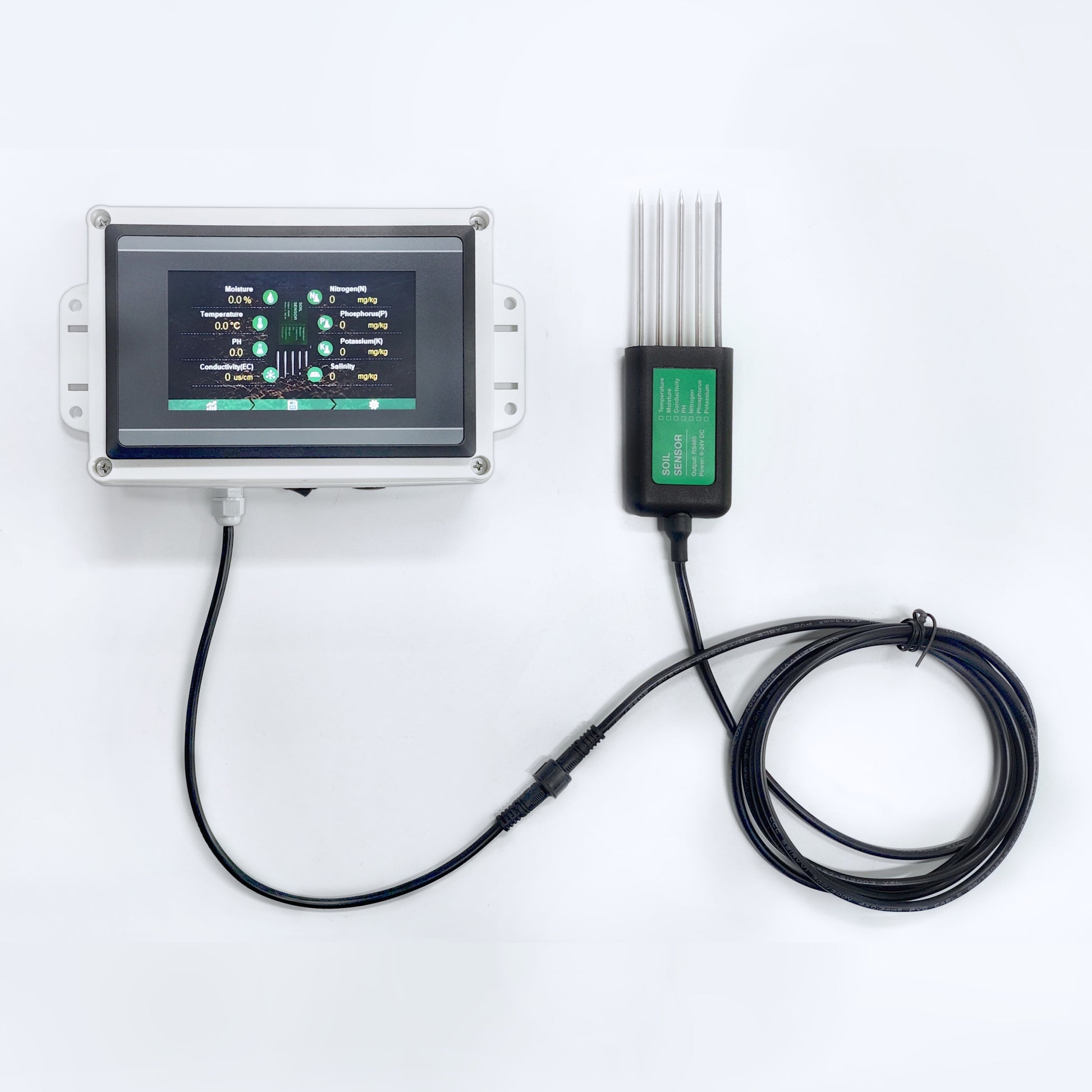

Rapidly Measure Soil Moisture, Temperature, EC, Salinity, pH, NPK 8-in-1 Portable Soil Tester Meter with Built-in Battery

Rapidly Measure Soil Moisture, Temperature, EC, Salinity, pH, NPK 8-in-1 Portable Soil Tester Meter with Built-in Battery

$110.00 USD
$110.00 USD
Sale Sold out
样式

Rapidly Measure Soil Moisture, Temperature, EC, Salinity, pH, NPK 8-in-1 Portable Soil Tester Meter with Built-in Battery



Features

  1. Plug and play testing, Rapid measure soil Temperature, humidity (Moisture), conductivity (EC), PH, Nitrogen (N), Phosphorus (P), Potassium (K).

  2. 4.3" LCD touch screen easy to operate, display real-time value, curve, logs, can set calibration on screen

  3. Inside 5000mA rechargeable lithium battery, can continuously operate for 48 hours, come with AC110/220V to DC12.6V charger

  4. Support 1900 logs, settable interval of logging, can export logs to SD card, come with 1GB SD card

  5. Connect sensor by pluggable waterproof connector

  6. Sensor cable length is 2m, can extend

  7. Portable or wall-mounted

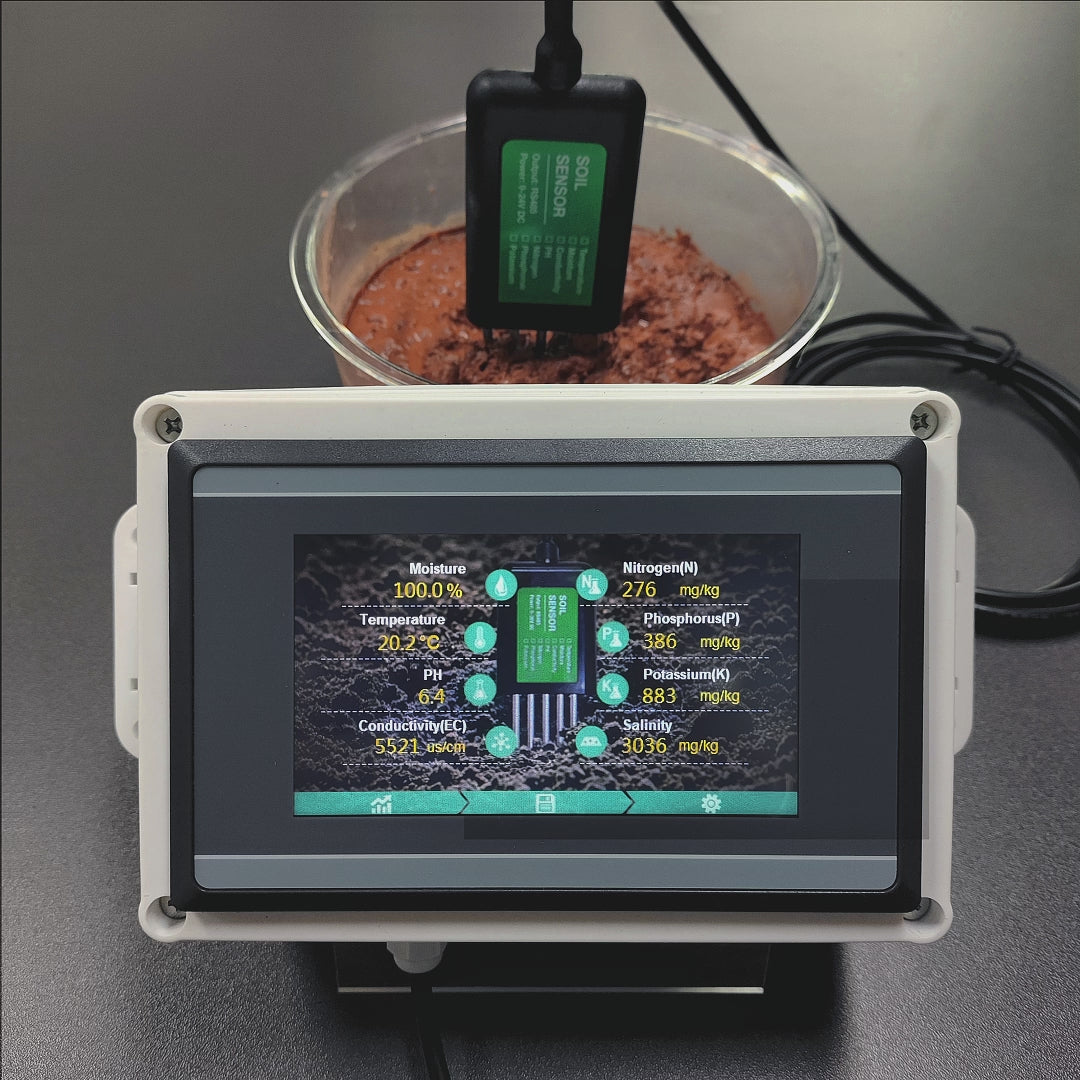

Soil parameters measuring

Temperature

ŸMeasuring range: -40℃-80℃

ŸAccuracy: ±0.5℃ (25℃)

ŸLong-term stability: ≤0.1%℃/y

ŸResponse time: ≤15s

Moisture

ŸMeasuring range: 0-100%RH

ŸAccuracy: 3% within 0-50%, 5% within 50-100%

ŸLong-term stability: ≤1%RH/y

ŸResponse time: ≤4s

Conductivity (EC)

ŸMeasuring range: 0-20000us/cm

ŸAccuracy: 0-10000 us/cm range is ±3%; 10000-20000 us/cm range is ±5%

ŸLong-term stability: ≤1%uS/cm

ŸResponse time: ≤1s

PH

ŸMeasuring range: 3-10 PH

ŸAccuracy: ±0.3PH

ŸLong-term stability: ≤5%/year

ŸResponse time: ≤10S

Nitrogen

Phosphorus

Potassium

ŸMeasuring range: 1-1999 mg/kg(mg/L)

ŸResolution：1 mg/kg(mg/L)

ŸResponse time: ＜1S

Salinity

ŸMeasuring range: 1-1999 mg/kg(mg/L)

ŸResolution：1 mg/kg(mg/L)

ŸResponse time: ＜1S

Reminder on measurement

  1. The sensor only measures fast-acting NPK, which is the soluble ionized NPK. Urea cannot be measured before it is decomposed

  2. The sensor can only measure the change of the overall content of NPK, and cannot measure the value of N, P or K separately. To measure the value of N, P or K separately, only chemical methods and chemical reagents can be used

  3. When measuring, the soil moisture must be kept above 20%

  4. The sensor is inserted into the soil and waits for about 3-5 minutes before reading a stable PH value



Specification

Power supply

DC12.6V

Max Power consumption

2W

Screen

4.3" TFT LCD

Resolution (PX)

480X272

Operating environment

-10℃-50℃/ 10~90%RH

Screen dimensions

142*70.5*27mm

Inside battery

5000mA rechargeable lithium battery

SD card

1GB

Weight

1KG



Size



Equipment operating


1. Connect sensor


2. Insert the sensor into the soil


3. Operating on screen

Curve graph page

Click button to switch the curve graph of each parameter (TH, PH, EC and NPK)


View data log in this page

Interval of logging means how often the device logs data

Max number logs is 1900, logs can be deleted or export to SD card by pressing button.


Setting page

In calibration page, can set factor and offset for each measuring parameters.

Factor and offset like the formula

Y=AX+B

Y is reading value

X is original value

A is factor

B is offset


4. Copy log to computer


Put SD card into reader and plug on computer

Find history file in USB flash disk


5. Charging for inside battery
