Trathielec

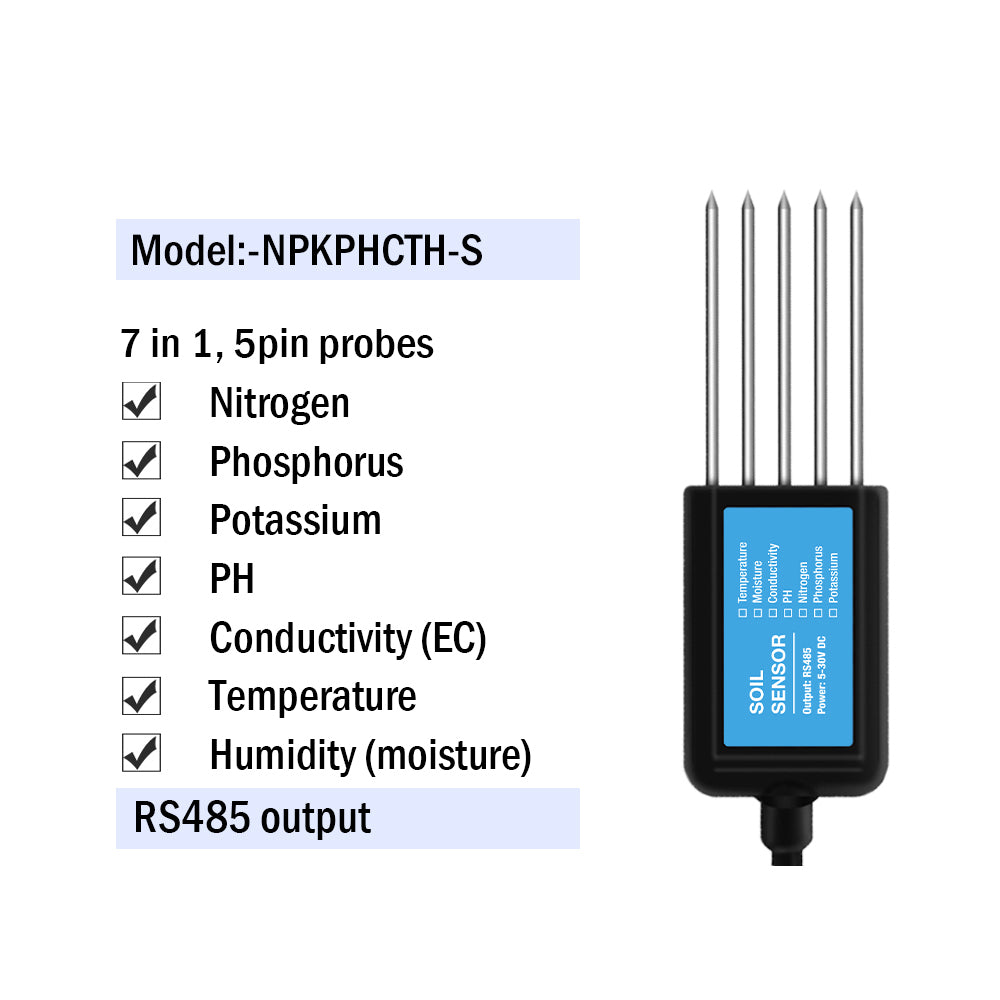

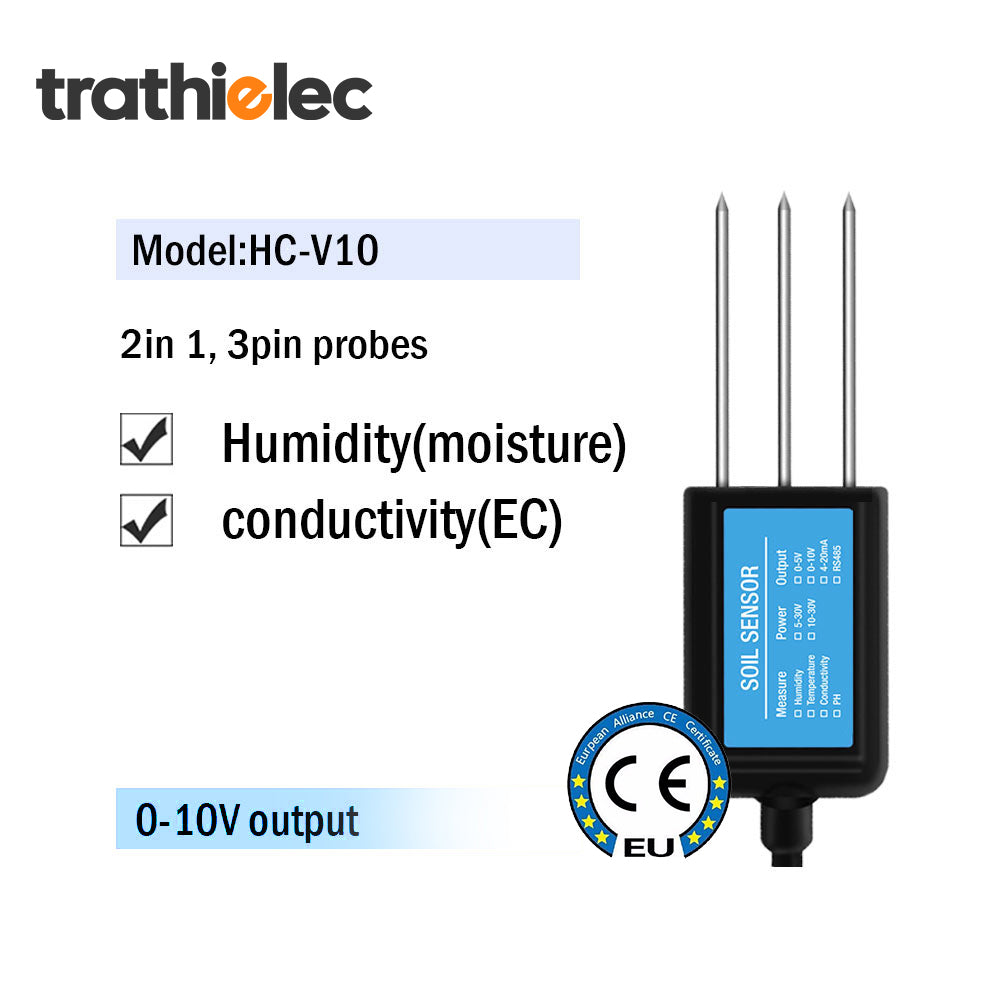

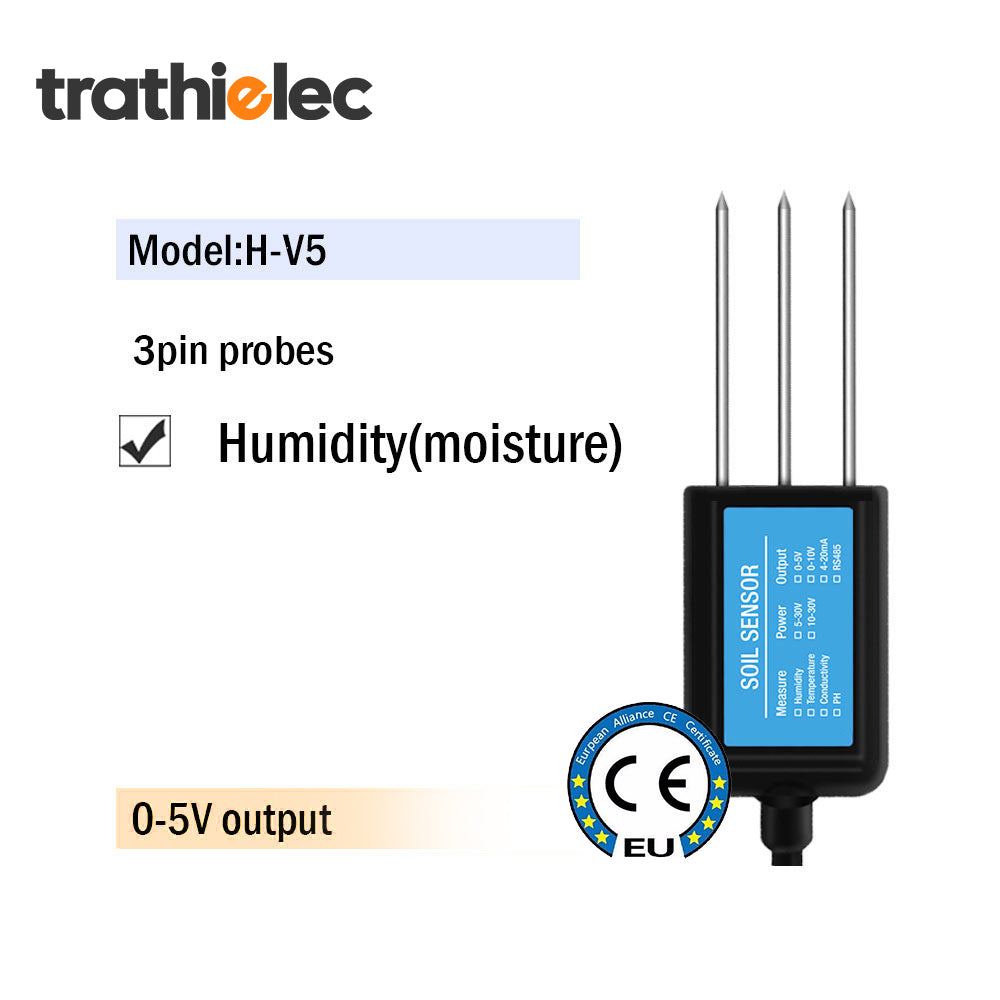

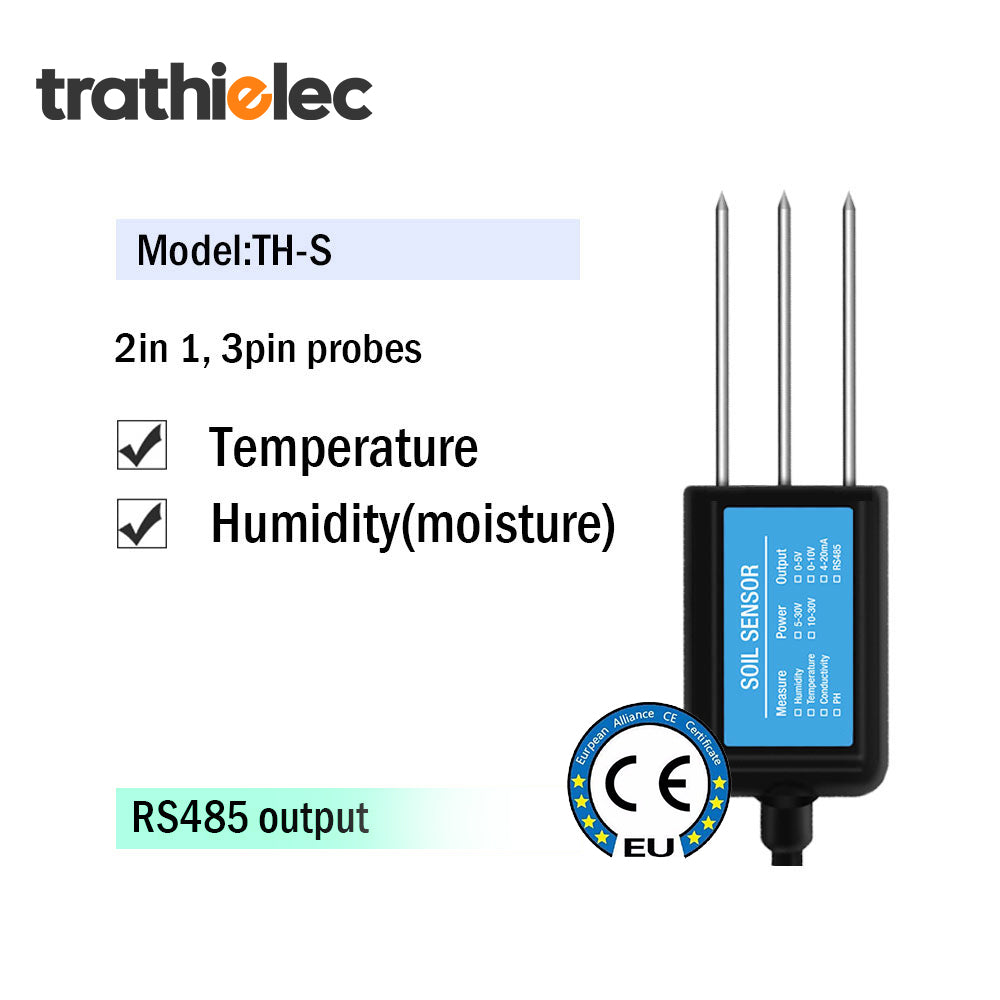

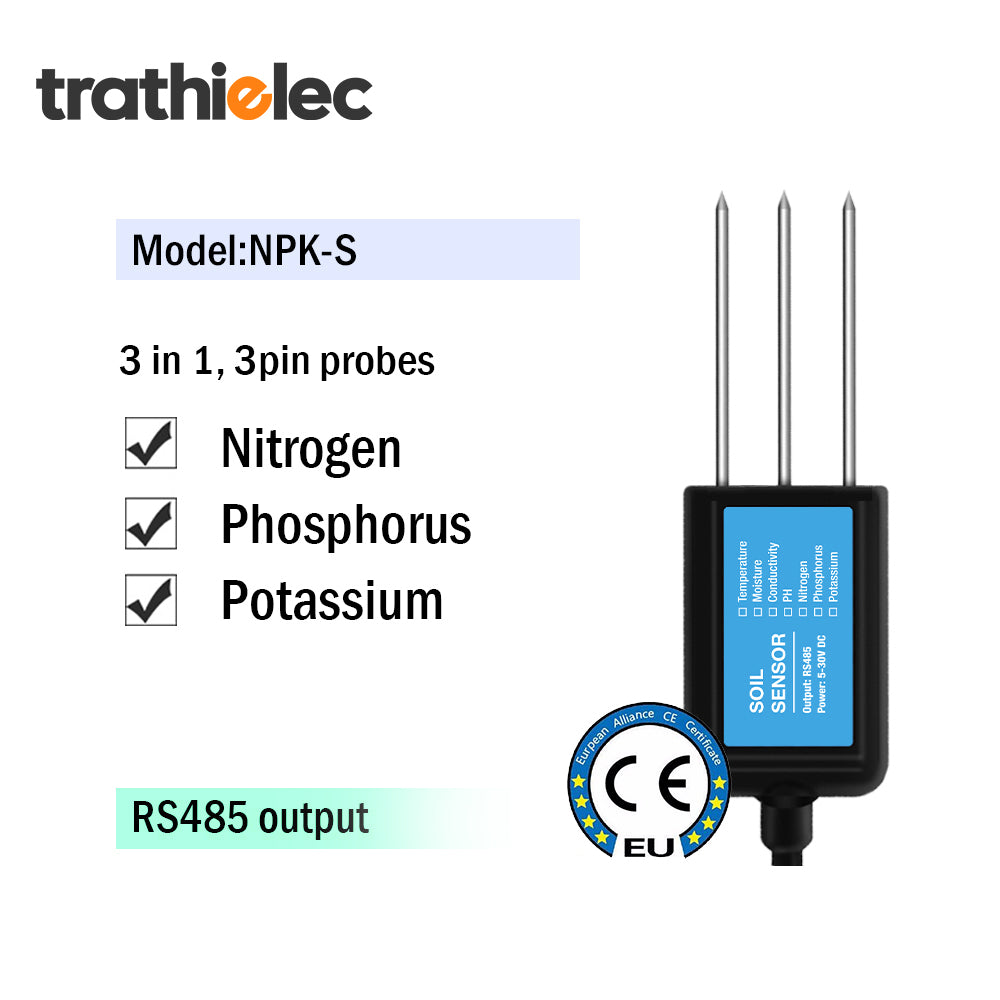

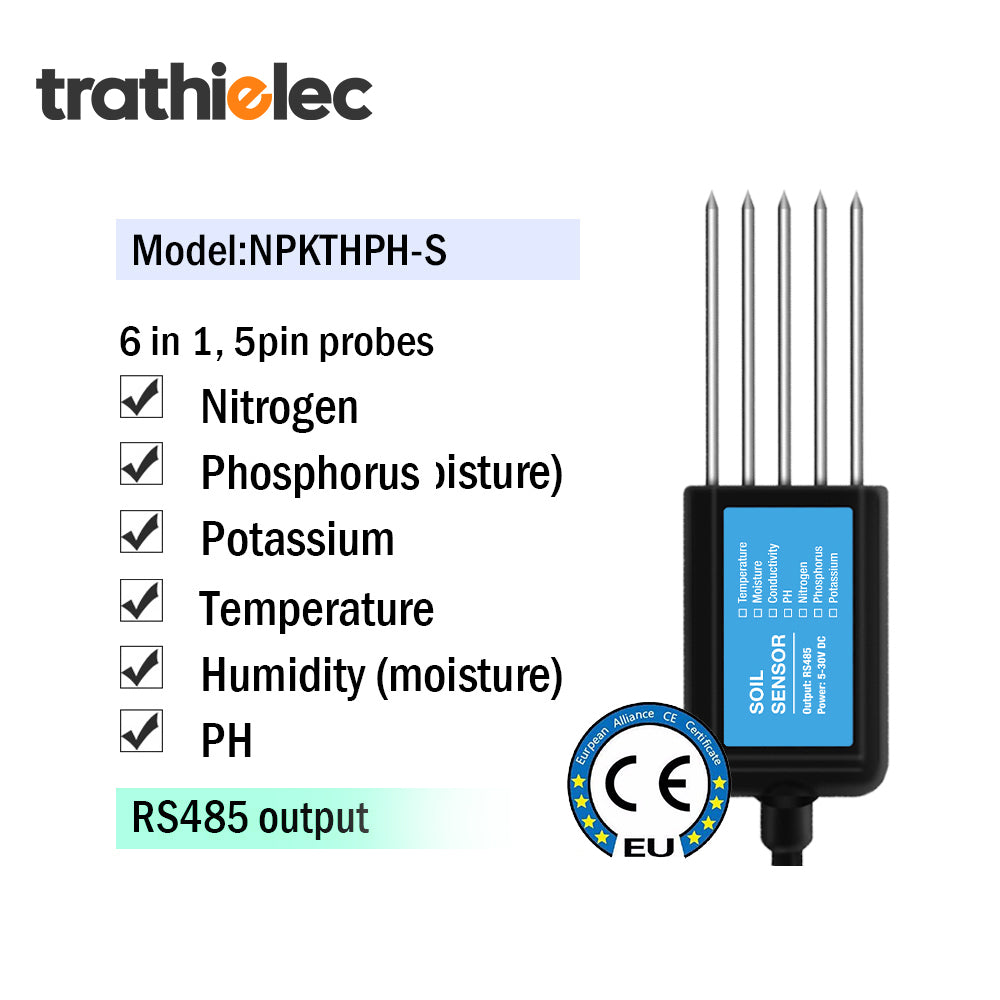

IP68 7 in 1 Soil Moisture PH EC Temperature NPK Sensor with RS485 4-20mA 0-5V 0-10V Output for Agriculture Monitoring
IP68 7 in 1 Soil Moisture PH EC Temperature NPK Sensor with RS485 4-20mA 0-5V 0-10V Output for Agriculture Monitoring
Regular price
$24.75 USD
Regular price
Sale price
$24.75 USD
Unit price
/
per
Couldn't load pickup availability

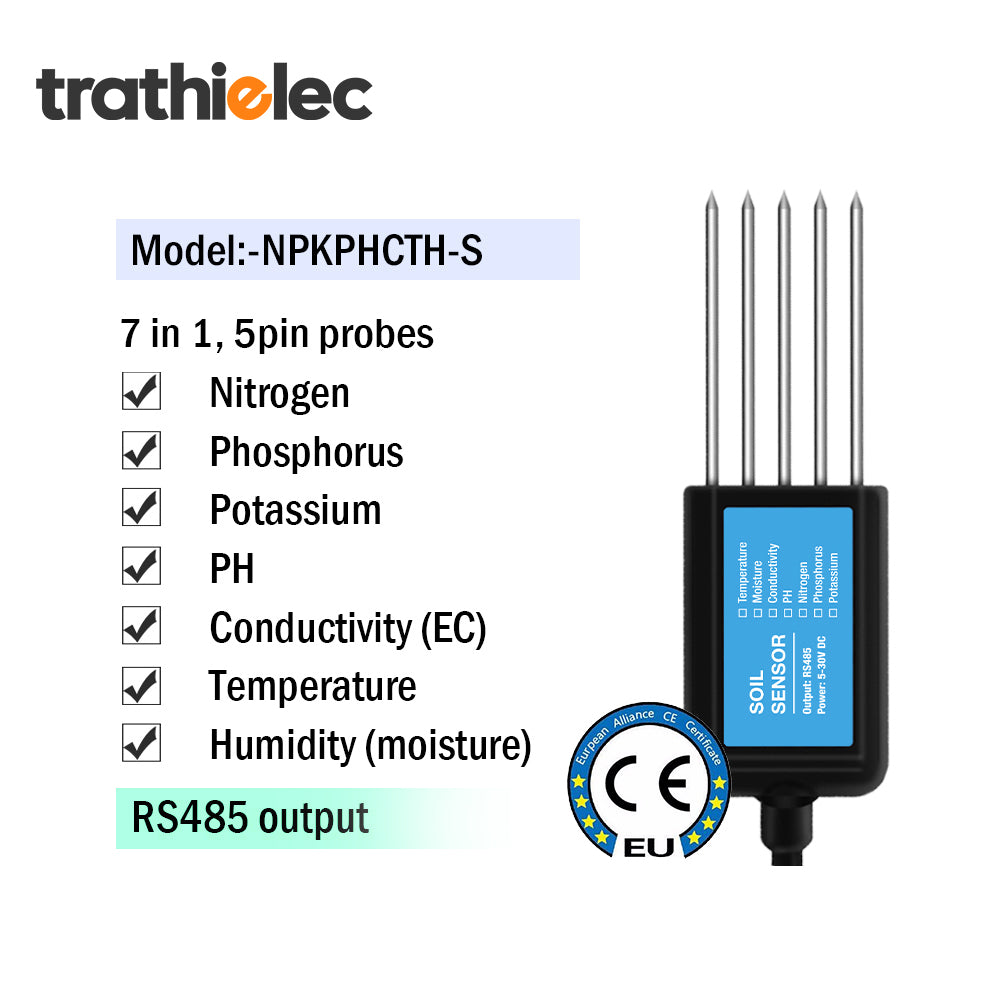

RS485 Modbus Soil Sensor 7 in 1 Measure Soil Moisture Temperature Humidity EC PH NPK
it is for soil temperature and moisture, PH, conductivity (EC),measurement, compared with the original German high-precision sensors and soil drying method of weighing the actual calibration, high precision, fast response, stable output. By the soil salt content of small, suitable for all kinds of soil. Long-term buried in the soil, resistant to long-term electrolysis, corrosion resistance, vacuum potting, completely waterproof.

|
Power supply
|
DC 4.5-30V
|
|
|
Maximum power consumption
|
0.5W (24V DC power supply)
|
|
|
Working temperature
|
-20℃~+60℃
|
|
|
Core chip temperature resistance
|
85℃
|
|
|
Protection grade
|
IP68
|
|
|
Probe material
|
Anti-corrosion special electrode
|
|
|
Sealing material
|
Black flame-retardant epoxy resin
|
|
|

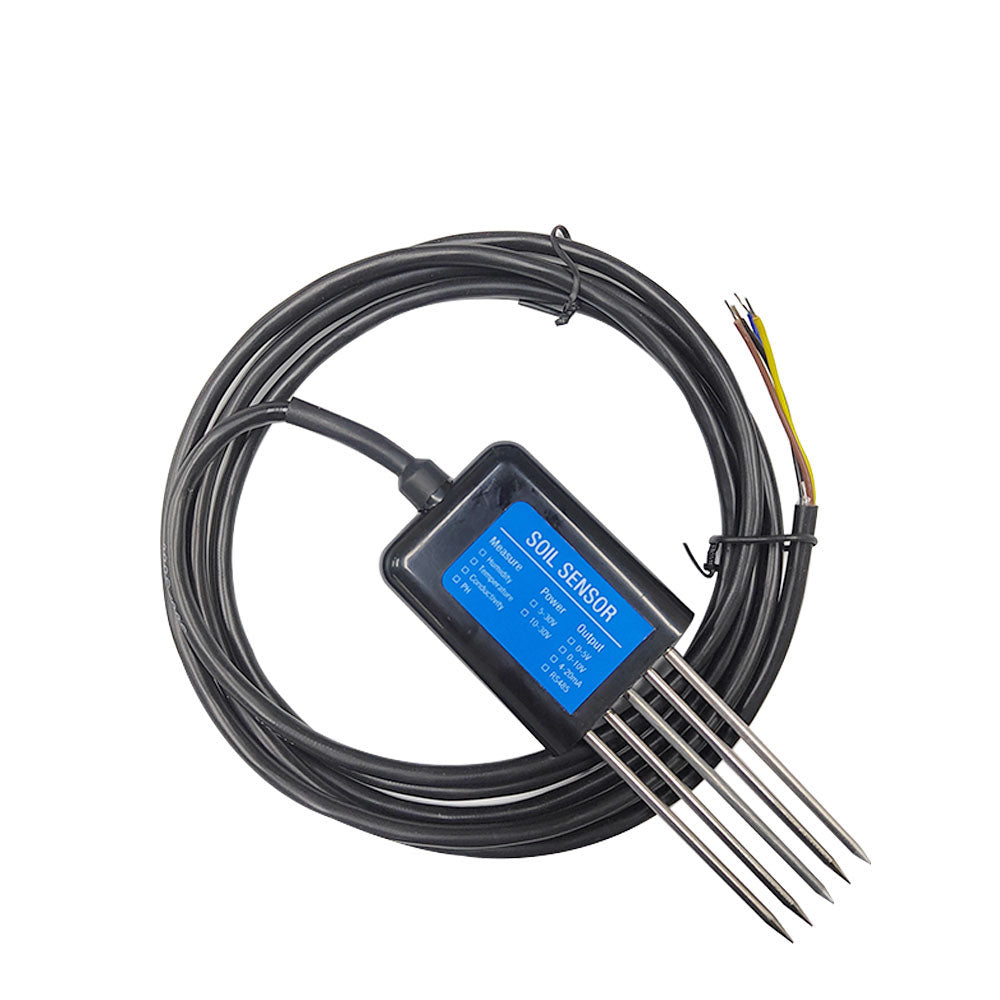

The default cable length
|
2 meters, the cable length
can be customized as required
|
|
|

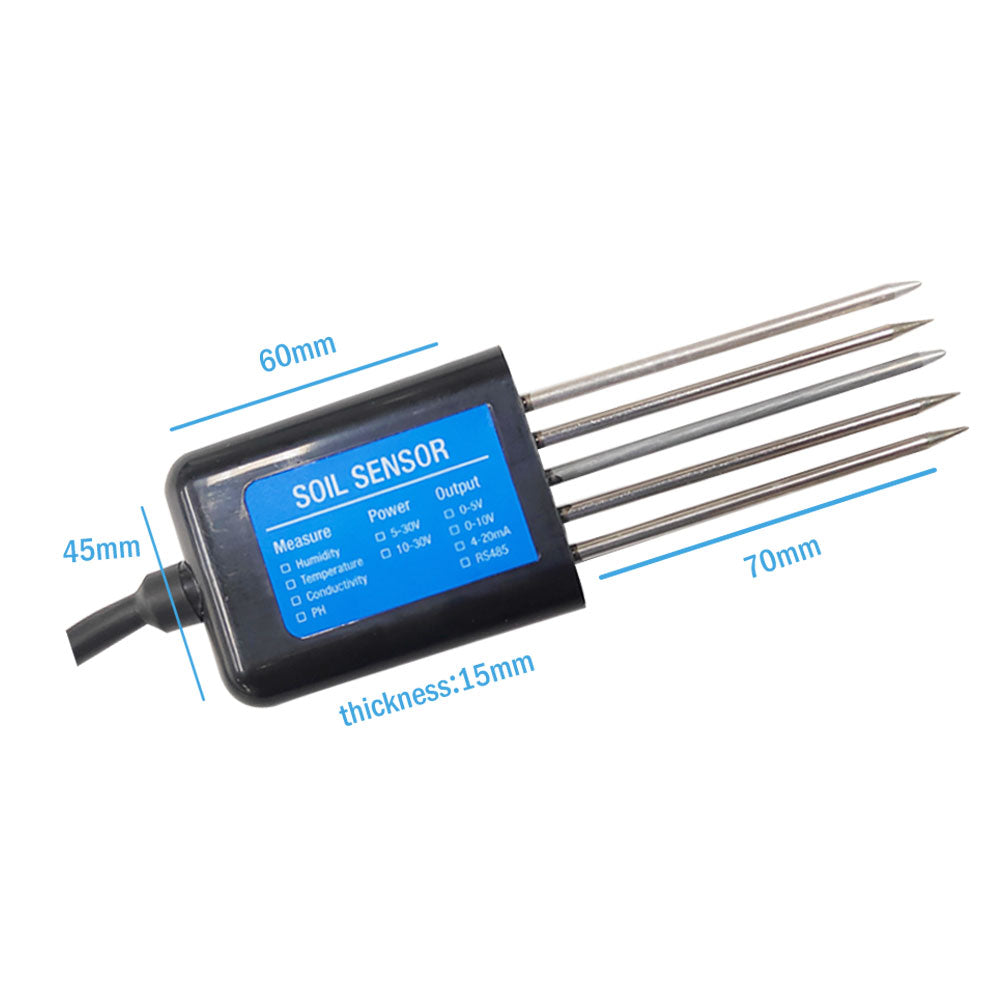

Dimensions
|
45*15*123mm
|
|
|
Output signal
|
RS485
|
|
|
Soil temperature
|
Range
|
-40~80℃
|
|
Accuracy
|
±0.5℃ (25℃)
|
|
|
Resolution
|
0.1℃
|
|
|
Soil moisture
|
Range
|
0-100%
|
|
Accuracy
|
±2% within 0-50%,
@ (brown soil, 30%, 25℃) ±3% within 50-100%,
@ (brown soil, 60%, 25℃)
|
|
|
Resolution
|
0.1%
|
|
|
Soil EC
|
Range
|
0-20000μS/cm
|
|
Accuracy
|
0-10000μS/cm ≤±3%FS,
10000-20000μS/cm ≤±5%FS
|
|
|
Resolution
|
1μS/cm
|
|
|
Soil ph
|
Range
|
3~9PH
|
|
Resolution
|
0.1
|
|
