RS485 Modbus Temperature Humidity Pressure Light TVOC PM2.5 PM10 CO2 HCHO O3 O2 H2S CH4 CO NO2 SO2 H2 NH3 Air Quality Sensor
RS485 Modbus Temperature Humidity Pressure Light TVOC PM2.5 PM10 CO2 HCHO O3 O2 H2S CH4 CO NO2 SO2 H2 NH3 Air Quality Sensor
Couldn't load pickup availability
TTE-SAQ Series Air Quality Sensor Manual
Measuring parameters
|
Range |
Resolution |
Precision |
Preheat time |
|
|

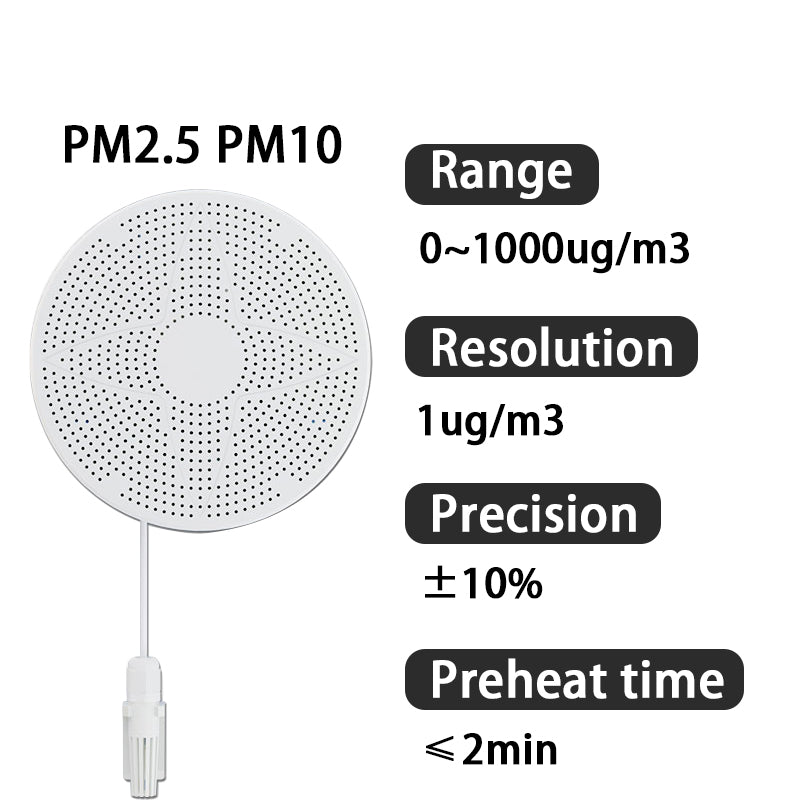

PM2.5 |
0~1000ug/m3 |
1ug/m3 |
±10% |
≤2min |
|
PM10 |
0~1000ug/m3 |
|||
|

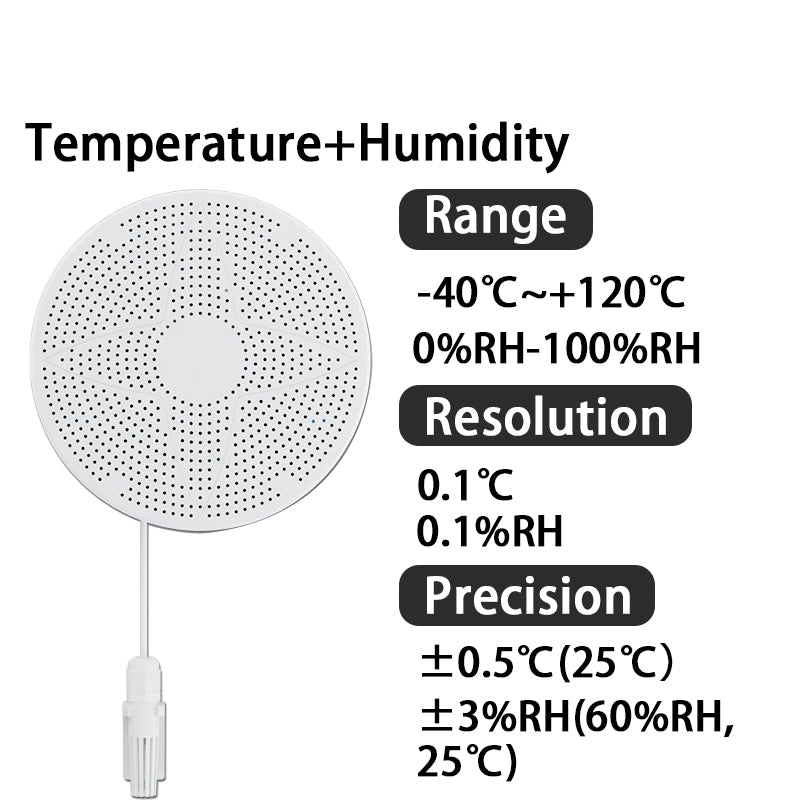

Temperature |
-40℃~+120℃ |
0.1℃ |
±0.5℃(25℃） |
|
|
Humidity |
0%RH-100%RH |
0.1%RH |
±3%RH（60%RH,25℃） |
|
|

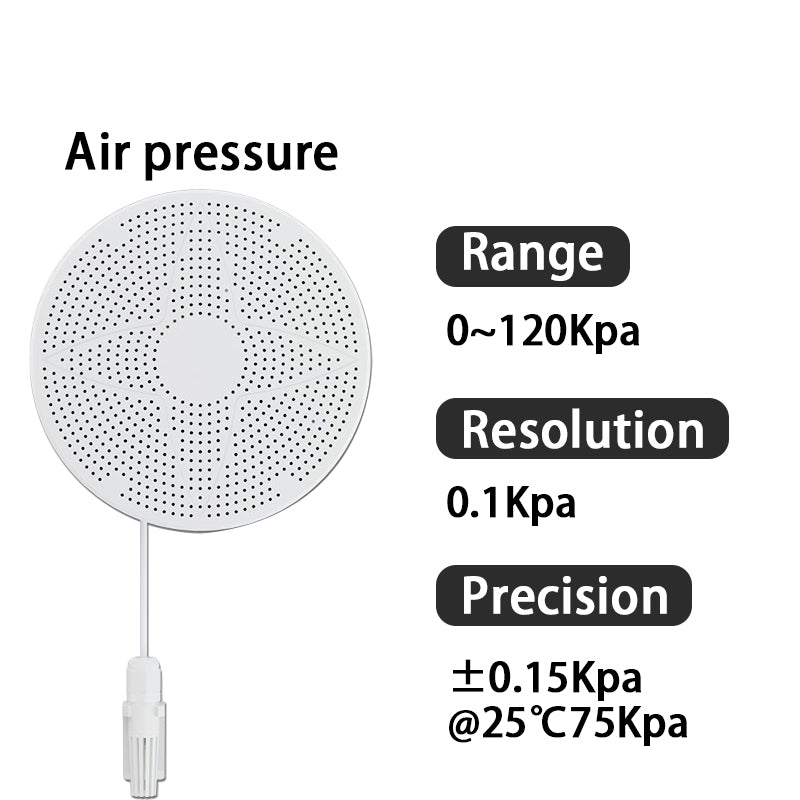

Air pressure |
0~120Kpa |
0.1Kpa |
±0.15Kpa@25℃75Kpa |
|
|

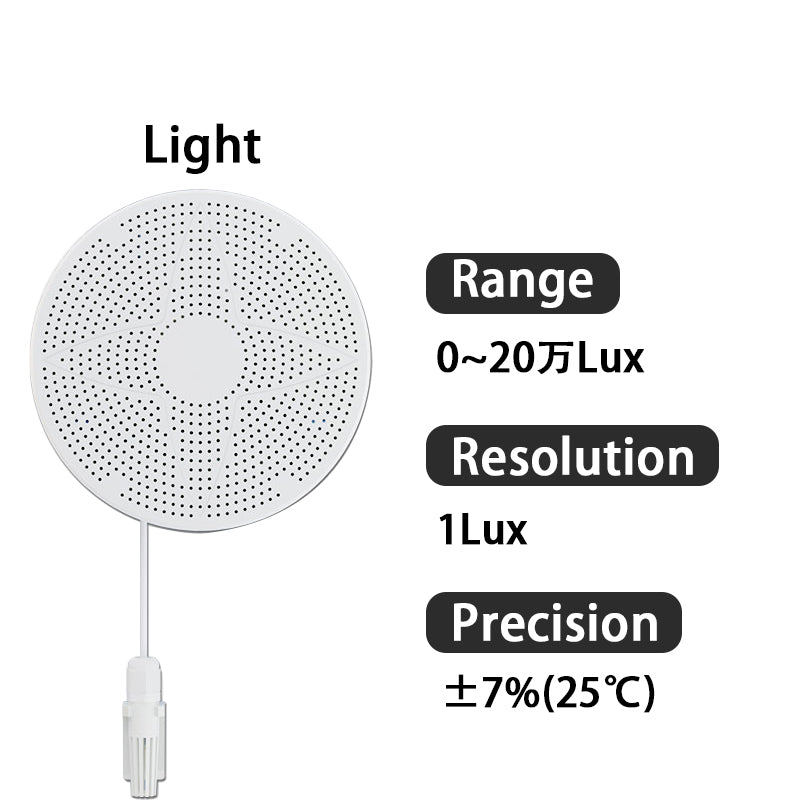

Light |
0~200000 Lux |
1Lux |
±7%(25℃) |
|
|

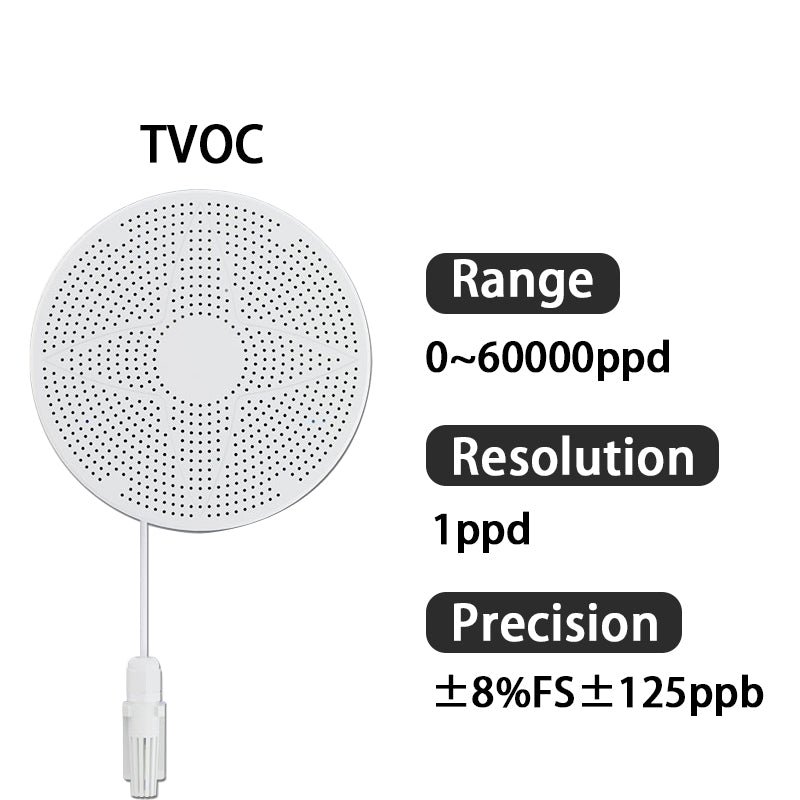

TVOC |
0~60000ppb |
1ppb |
±8%FS±125ppb |
|
|

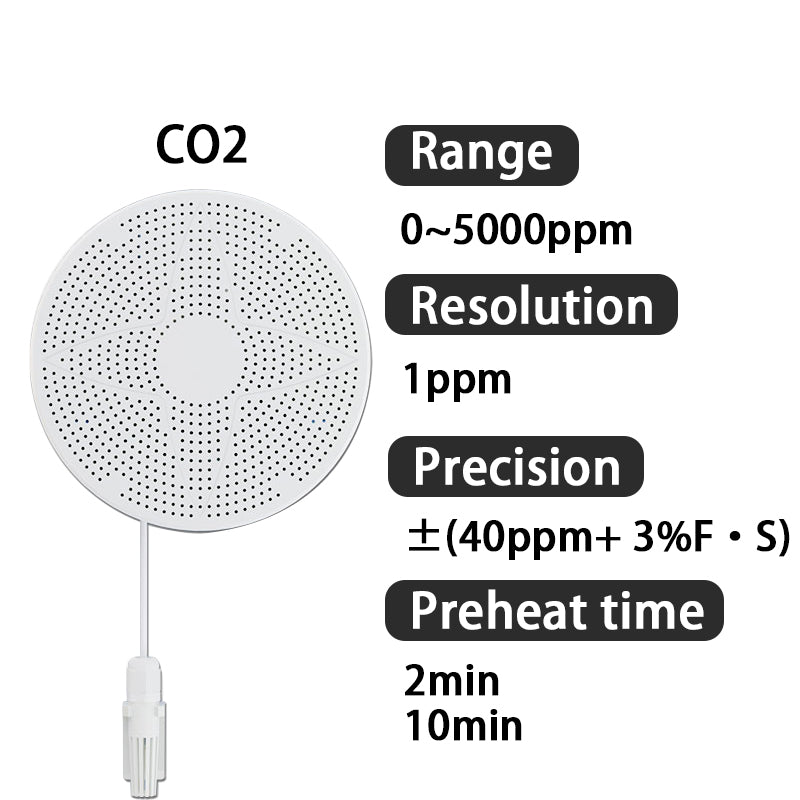

CO2 |
0~5000ppm |
1ppm |
±(40ppm+ 3%F·S) |
2min-10min(max precision) |
|
HCHO |
0~5ppm |
0.01ppm |
±5%FS |
≥5 min |
|
O3 |
0~10ppm |
0.01ppm |
±6%FS |
≥5 min |
|
O2 |
0~25%Vol |
0.1%Vol |
±3%FS |
≥5 min |
|

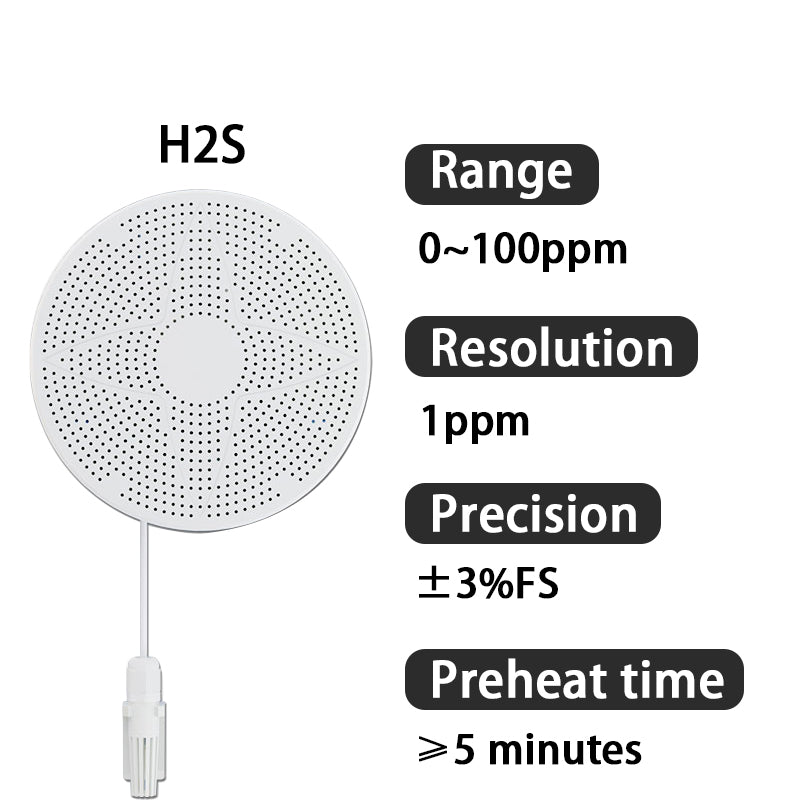

H2S |
0~100ppm |
1ppm |
±3%FS |
≥5 min |
|

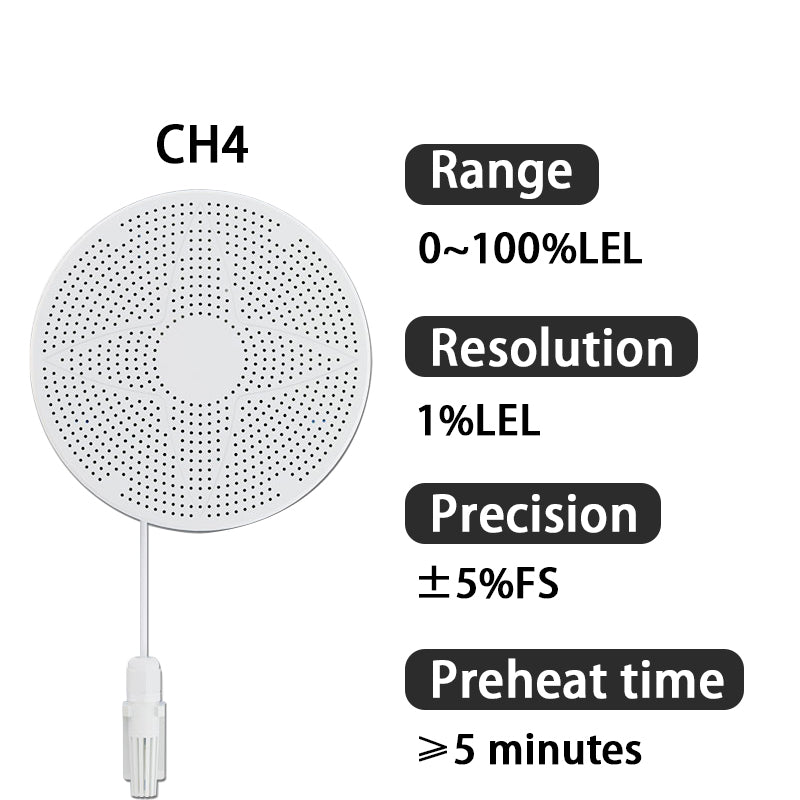

CH4 |
0~100%LEL |
1%LEL |
±5%FS |
≥5 min |
|
CO |
0~1000ppm |
1ppm |
±3%FS |
≥5 min |
|
NO2 |
0~20ppm |
0.1ppm |
±3%FS |
≥5 min |
|

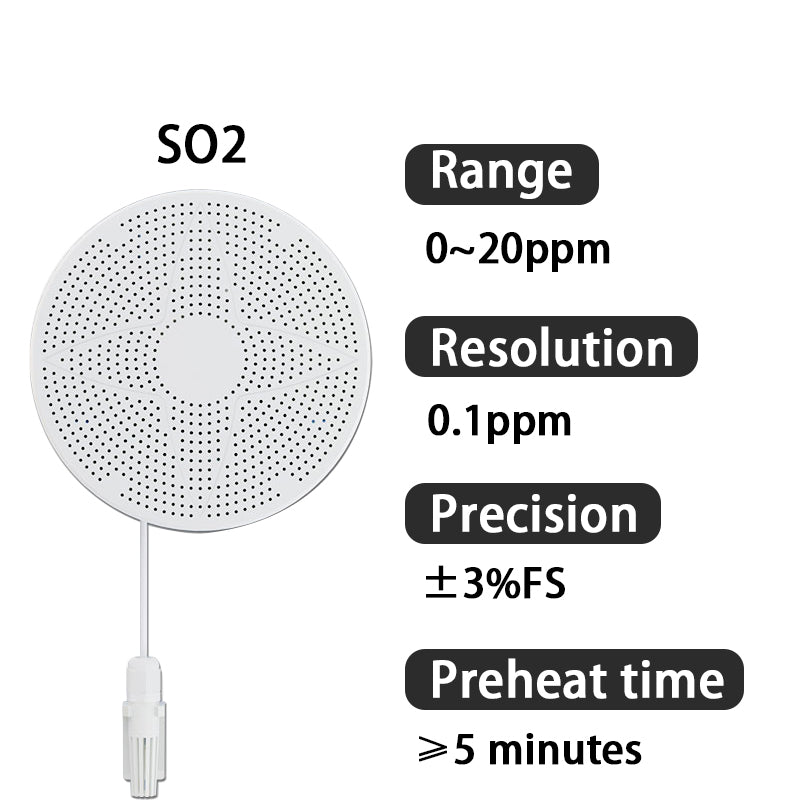

SO2 |
0~20ppm |
0.1ppm |
±3%FS |
≥5 min |
|

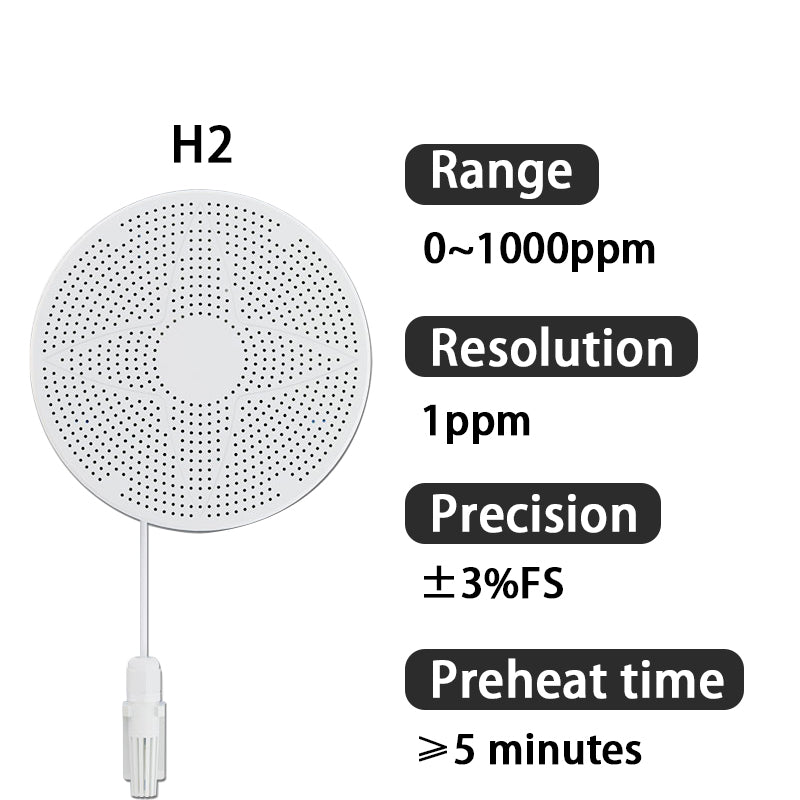

H2 |
0~1000ppm |
1ppm |
±3%FS |
≥5 min |
|

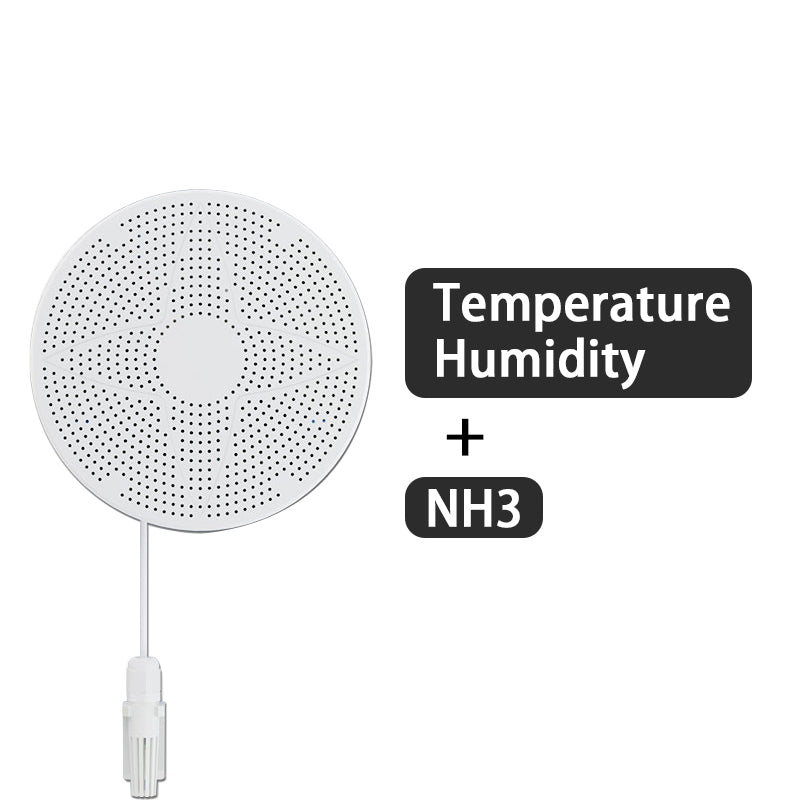

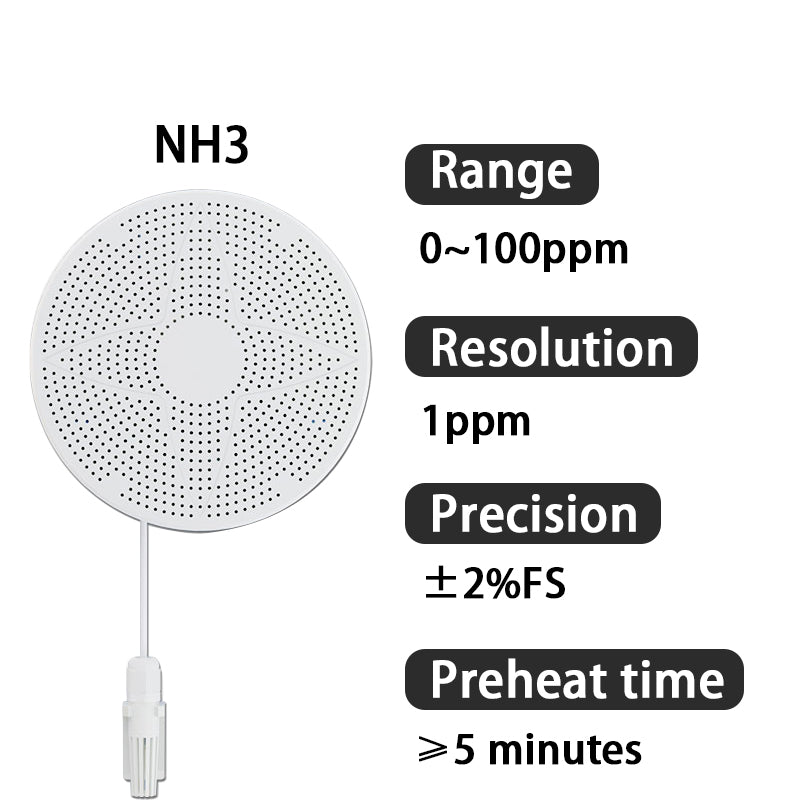

NH3 |
0~100ppm |
1ppm |
±2%FS |
≥5 min |
Test environment: temperature: 20℃, Humidity: 50%RH, atmospheres pressure :1pa,
Basic parameters
|
Power supply |
DC10-30V |
|
Working environment |
-10~+55℃ / 0 -95%RH |
|
output |
RS485 （Modbus RTU protocol） |
|
Material |
ABS |
|
mounting type |
wall mounted or ceiling mounted |
Size
Wiring
mounting type:
wall mounted
ceiling mounted
