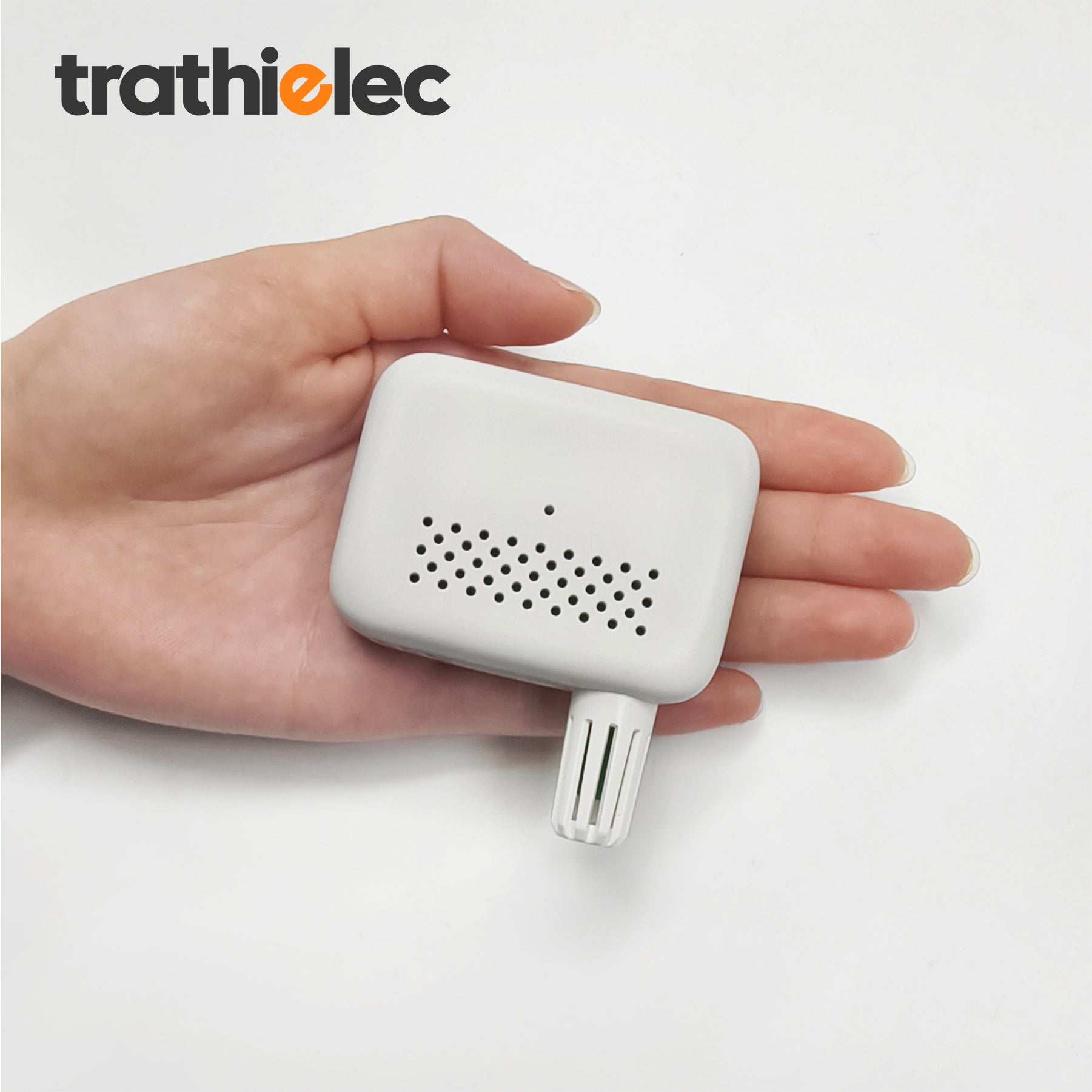

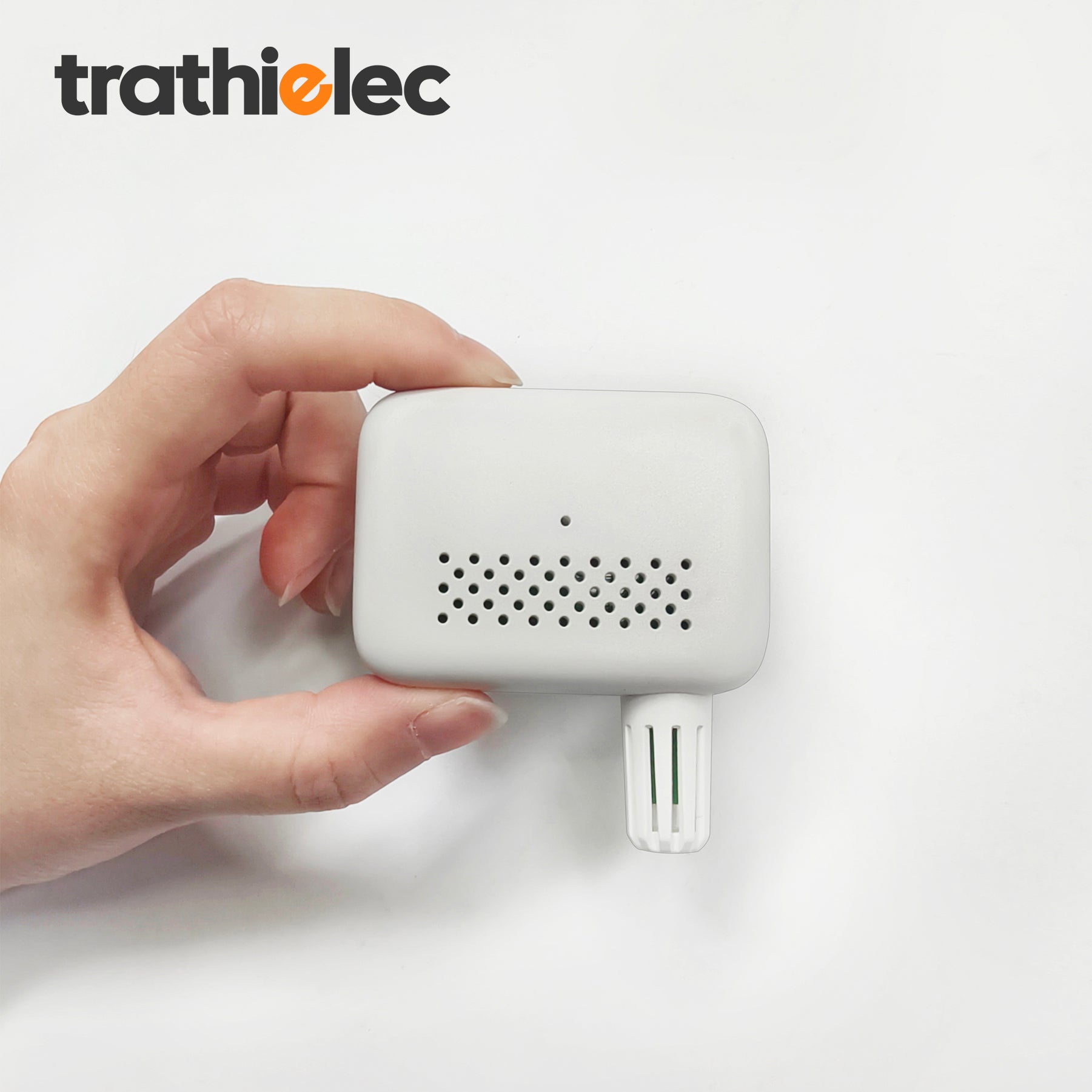

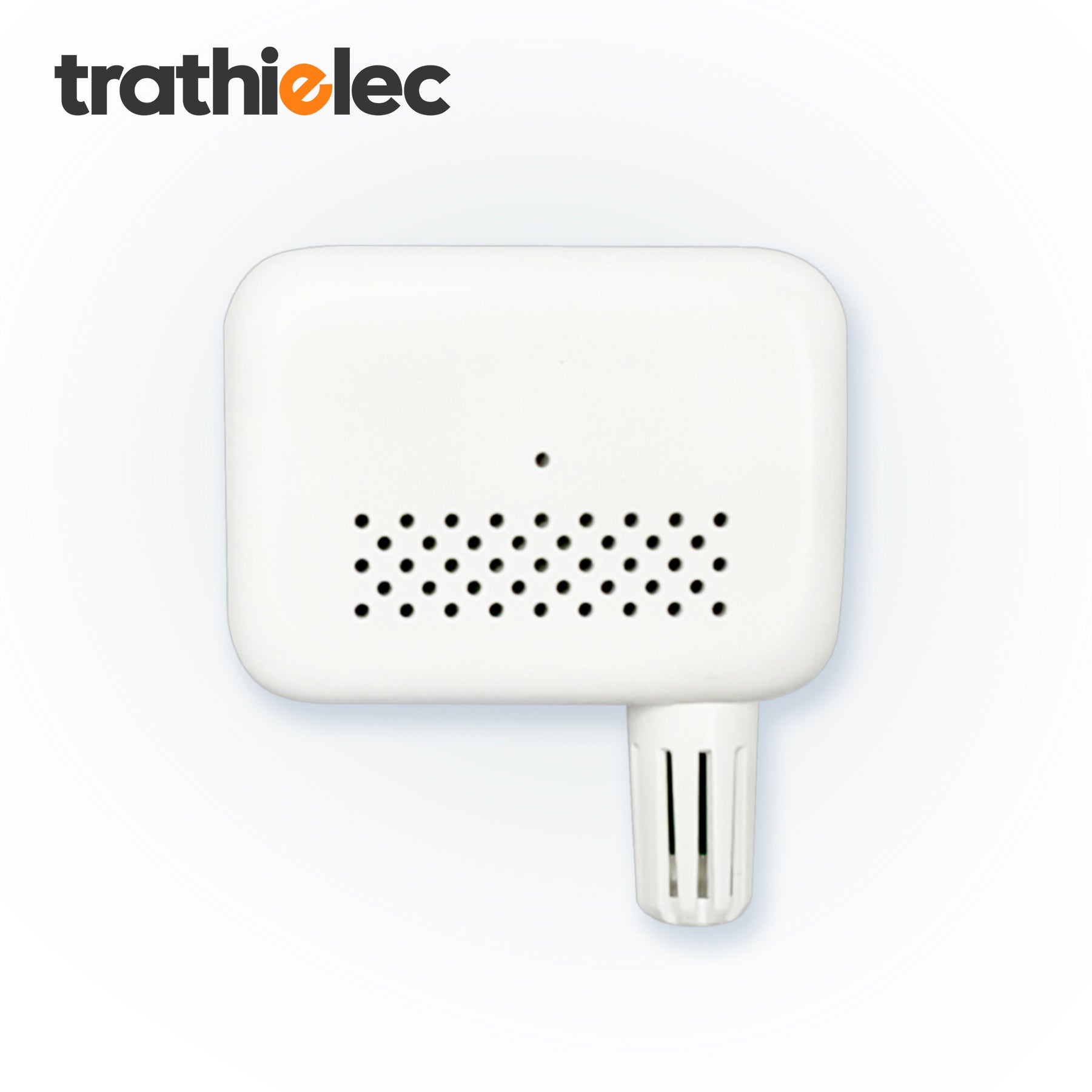

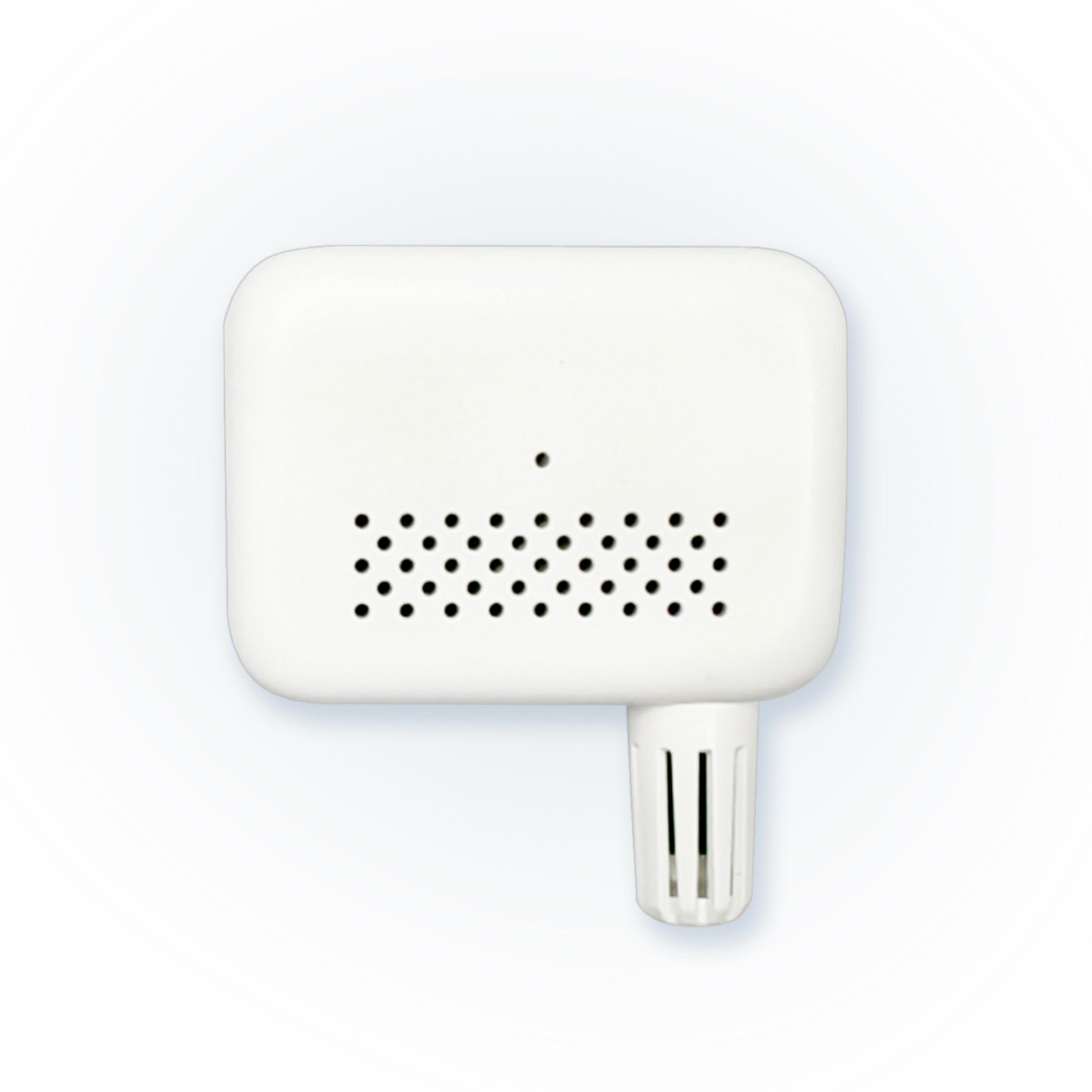

RS485 temperature and humidity sensor

RS485 temperature and humidity sensor

Product Overview

The temperature and humidity sensor has the function of collecting 1 channel of temperature, 1 channel of dew point temperature, and 1 channel of humidity. It adopts the standard Modbus RTU communication protocol and can remotely collect temperature and humidity data via the RS485 bus. It is applicable to scenarios such as the monitoring of the machine room environment in data centers, machine room micro - modules, and enterprise machine rooms for temperature and humidity monitoring.

Features

• RTOS real - time operating system, with timely response, high - efficiency processing, and reliable operation;

• Power supply: DC9-27V

• Power consumption: ＜10mA@12VDC

• Temperature measurement range: -40.0℃ to 85.0℃, accuracy: ±0.3℃ @ 25℃;

• Humidity measurement range: 5 - 95%RH, accuracy: ±3% (20 - 80%RH @ 25℃);

• Supports one - channel dew - point temperature collection, with a measurement range of - 40.0℃ to 85.0℃ and a typical accuracy of ±0.3℃ @ 25℃;

• RS485 output, Modbus RTU protocol;

• Supports setting the RS485 address via DIP switch;

• Has over - current, over - voltage, and reverse - connection and wrong - connection protection;

• Interface type: RJ45;

• Multiple installation methods such as magnetic suction, wall - hanging, and positioning holes.

• Size: 60*66.6*24mm (include probe) ;

• Working environment: -40℃ ~ 85℃ / 5% ~ 95%RH (No condensation);

Product Size

Wiring

Indicator light instructions

Installation method

1.  Positioning hole installation

2.  agnetic installation

3.  all Mount

DIP switch instructions

The slave ID be set through the DIP switch. its address setting range is 1 - 63

When the switch is toggled upwards to ON, the switch takes effect.

Example of switch setting: When switches 1, 3, and 5 are toggled to the ON position, value is 1+4+16 = 21. That is, the slave ID is set to 21.
