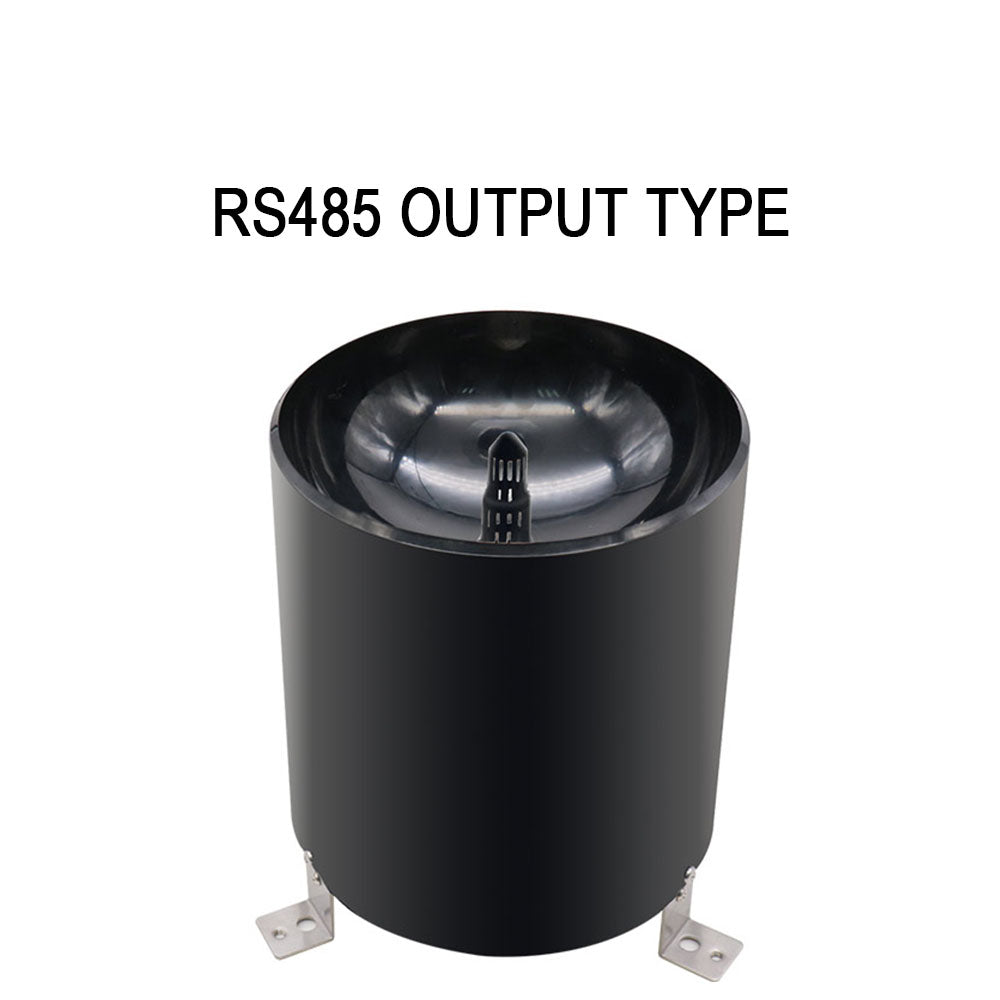

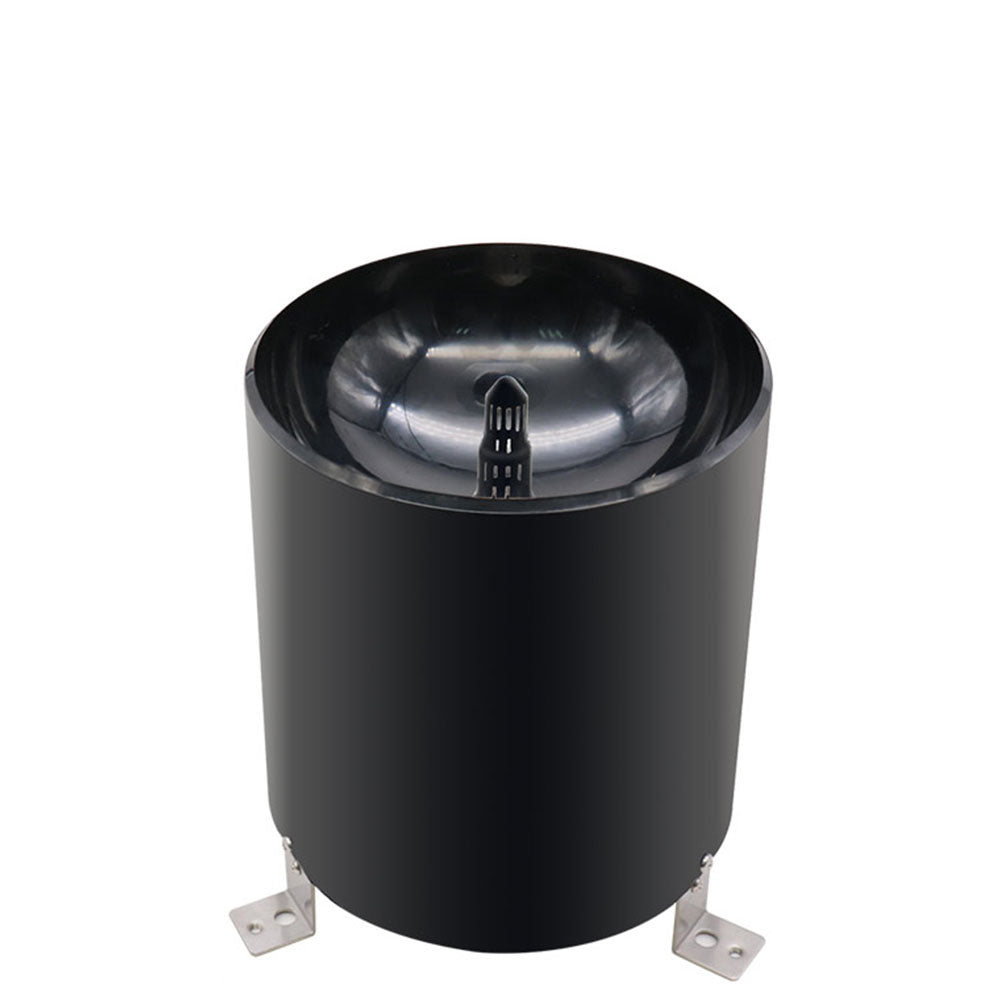

Tipping Bucket Rain Gauge RS485 Pulse Type High Precision Rain Sensor Meteorological Rain Gauge

Cylinder diameter

Φ200mm

Resolution

0.2mm

Measuring accuracy

≤±3%

Point angle

40° ~ 45°

Output

Pulse or RS485

Working environment

-10~+55℃ / 0 -95%RH

Raininess range

0mm~4mm/min

Max 8mm/min

RS485 type

Power supply: 4.5~30V

Power consumption: 0.24W

Pulse input type

Load voltage: ≤100V

Load current: ≤0.5A
